Colnago C68-R Vuelta Ltd Edition Carbon Road Bike Dura Ace Di2

ssp
Code Size Stock SSP
C68R-VUELTA-420 420 mm 0 £20,000.00
C68R-VUELTA-455 455 mm 0 £20,000.00
C68R-VUELTA-485 485 mm 1 £20,000.00
C68R-VUELTA-510 510 mm 1 £20,000.00
C68R-VUELTA-530 530 mm 0 £20,000.00
C68R-VUELTA-550 550 mm 0 £20,000.00
C68R-VUELTA-570 570 mm 0 £20,000.00

ETA:

In Stock

Quantity

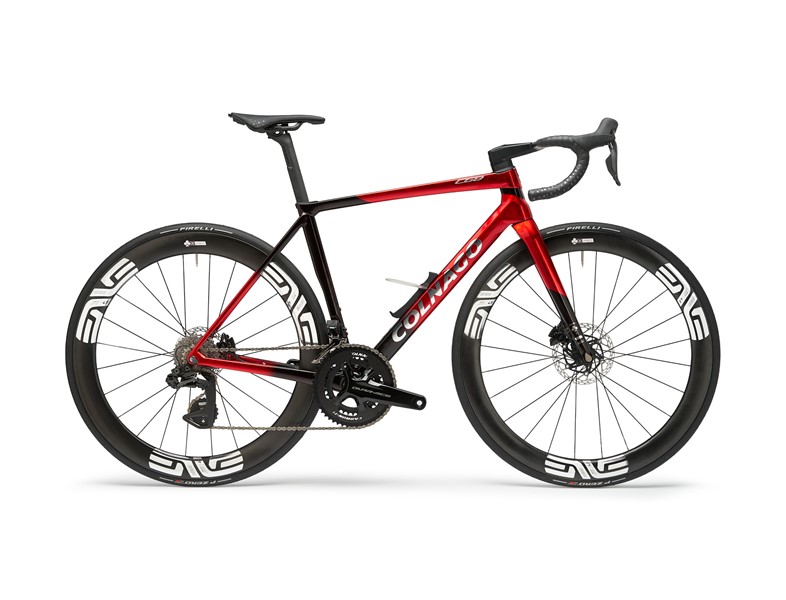

Colnago C68-R Vuelta Ltd Edition Carbon Road Bike Dura Ace Di2

Italian creativity and manufacturing inspired by the Passion of La Vuelta

C68 Rossa combines the elegance of Candy Red over hand-applied silver metal leaf with details that celebrate the meeting of Italy and Spain.

Details

NameColnago C68 Rossa
Limited edition90 numbered pieces
ModelC68 Road
SeriesC Series

Frame

Frame (material)Modular carbon frame construction: 8 carbon parts.
Fork (material, section notes)Carbon fork for disc brakes, integrated cables, 1.1/8" section
HeadsetID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
SeatpostCarbon seatpost, 0.15 offset, "D-Shape" section
Through AxlesDiameter: 12 mm. length 100 mm (front) - 142 mm (rear)
Weight LimitThis model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg

Specifications

Drivetrain

Shifting systemShimano Dura Ace R9270 Di2 Disc - 12v
Front derailleurShimano Dura Ace FD-R9250
Rear derailleurShimano Shadow RD-R9250 12v
PulleyCeramicSpeed Shimano 9250/8150 OSPW
Special limited edition Colnago x La Vuelta
ChainShimano CN-M9100 12V
ChainringsCarbon-Ti special limited edition custom Colnago 52-36T
CassetteDefault
11-30T
Bottom bracketT47 Shimano with Steel Bearings
Crank lengthOption 1 (Standard for sizes 420 - 485): 170 mm
Option 2 (Standard for sizes 510 - 530): 172.5 mm
Option 3 (Standard for sizes 550 - 570): 175 mm

Brakes

BrakesShimano Dura Ace R9270
Brake RotorsCarbon-Ti X-Rotor SteelCarbon 3 - 160mm front / 140mm rear
Brake LeverShimano DURA-ACE ST-R9270
Brake CaliperStandard Flat Mount
WheelsENVE SES 4.5
Special limited edition Colnago x La Vuelta, hand-spoked in Italy.
MaterialCarbon
Rim HeightFront: 50 mm - Rear: 56 mm
Internal Channel Width25 mm
HubsENVE INNERDRIVE™ Premium Straight-Pull
Through AxlesFront: HH12-100 - Rear: HH12-142
TyresPirelli P ZERO RACE TLR SL 28mm BK
Maximum Tyre Size30 mm (nominal width)

Components

SaddlePrologo Nago R4
Special limited edition Colnago La Vuelta
HandlebarColnago CC.01 integrated Cockpit - regular geometry.
Special limited edition with La Vuelta logo
StemCC01 integrated cockpit
Handlebar TapeColnago Special Edition La Vuelta
Bottle CageColnago Special limited edition, replica of the La Vuelta Trophy
Other AccessoriesColnago X Tour de France bike cover
Special booklet | Collection edition: Colnago Fleur-de-Lys

Size Guide
