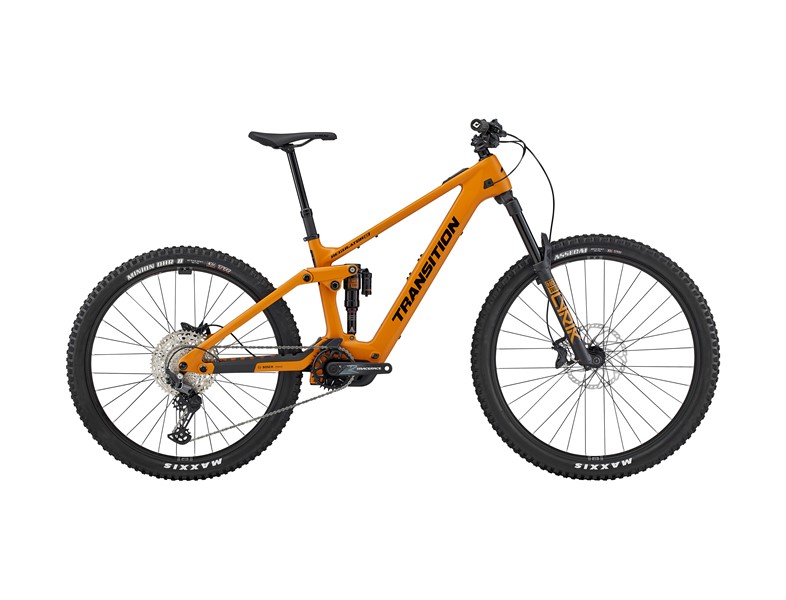

Transition Regulator SX Carbon MTB Deore Complete Ebike

ssp
Code Colour Size Group Stock SSP
01.25.11.5203 Madrone Gold S Deore 0 £6,999.00
01.25.11.5207 Madrone Gold M Deore 1 £6,999.00
01.25.11.5211 Madrone Gold L Deore 2 £6,999.00
01.25.11.5215 Madrone Gold XL Deore 0 £6,999.00

Colour Options

ETA:

In Stock

Quantity

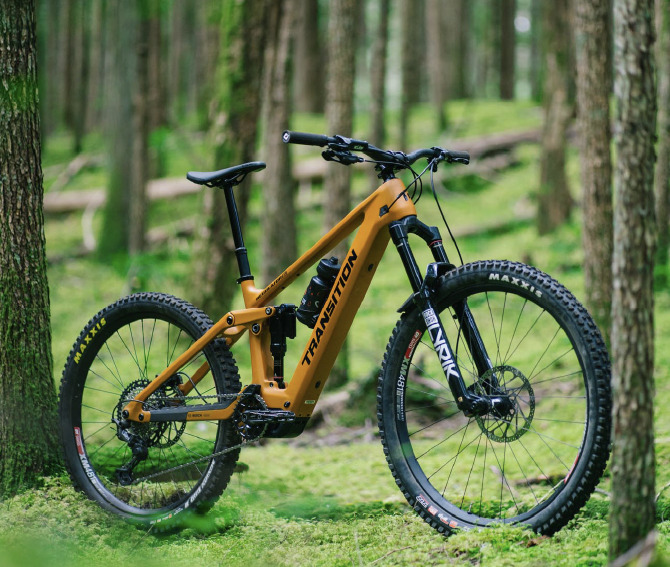

Transition Regulator SX Carbon MTB Deore Complete Ebike

Regulators, Mount Up!

The all-mountain steed is here to deliver fun on every trail.

The Regulator SX is our all-mountain eMTB designed to provide a nimble and responsive ride. No trail is too tame or too gnarly for the dedicated mixed-wheel platform with 150 mm rear and 160 mm front travel and geometry that promotes agility and playfulness. The Regulator SX will be the choice for riders looking for a chassis that excels in a variety of terrain with the added assistance of a Bosch SX drive unit delivering 55 Nm of torque from a 400 Wh battery. Coupled with our SBG geometry, you have an eMTB experience close to that of non-assisted bikes. This combination provides the best range-to-weight ratio for those who value lighter ride characteristics, giving you the best of both worlds with one of the most reliable and intuitive motor systems available on the market. For those looking for extra range, the Bosch range extender will take you up to 650 Wh for all day adventures.

150/160 mm; Mixed Wheels

The dedicated mixed-wheel platform with 150 mm rear and 160 mm front travel make the Regulator SX nimble and responsive, blurring the lines between our powered and non-powered bikes with complete builds starting at just over 41 lbs. With a 64.5° headtube angle and short, 27.5" wheel specific chainstays, we were able to make the Regulator one of the most manoeuvrable eMTBs we've ever ridden. This keeps the ride fun and engaging on everything from smooth flow trails to steep tech.

High Power to Weight

The Bosch SX system delivers the highest power-to-weight ratio possible. Perfect for riders who want the lightest ride characteristic from their eMTB and have it excel in a wide variety of terrain, from smooth singletrack to rocks and roots. The Bosch SX system is one of the lightest on the market, while still providing a high peak power of 600 W. Complete builds come in at just over 41 lbs, giving you a ride feel nearly matched to that of our non-powered bikes.

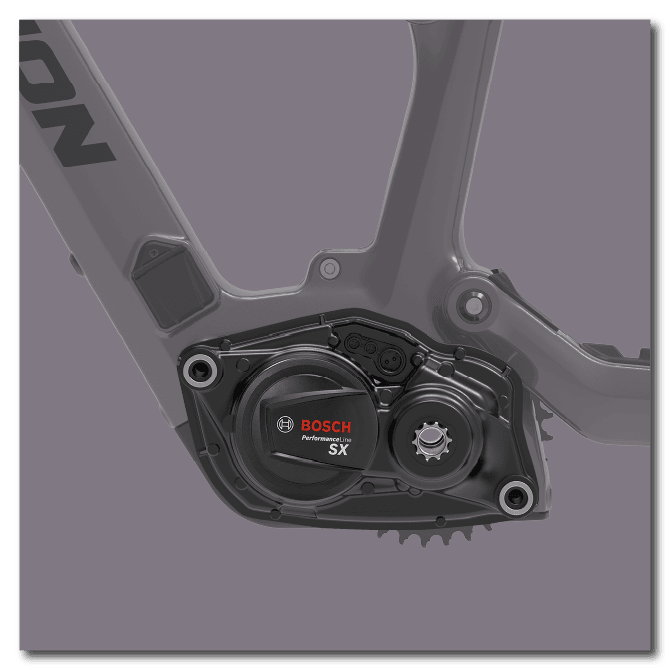

Bosch Performance Line SX

Powered by the Bosch Performance Line SX system, the Regulator gets the legendary reliability of Bosch in a lightweight package giving you 55 Nm of torque and 600 W peak power. While powerful, the system also provides an incredibly natural feel that delivers power without breaking traction, keeping your momentum and helping you clear technical trails.

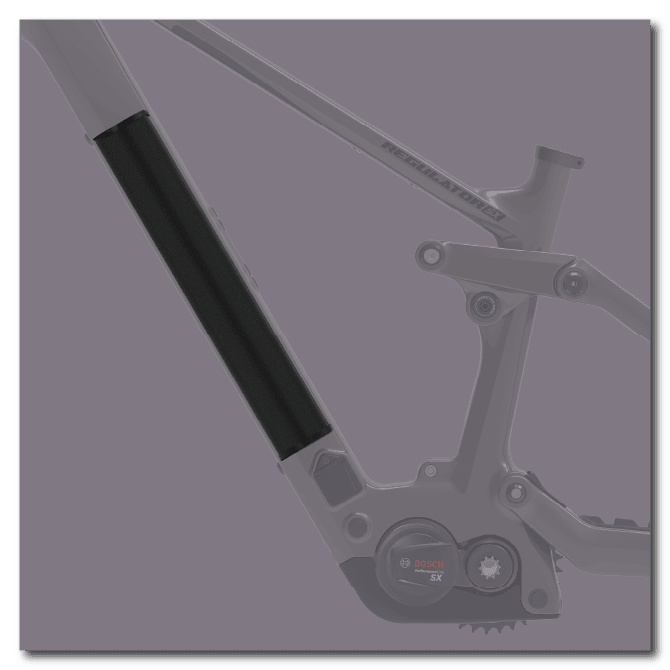

Bosch 400 Wh Battery

Enclosed low in the downtube is Bosch's 400 Wh battery. Perfect for local laps where you want the most manoeuvrable eMTB in the market.

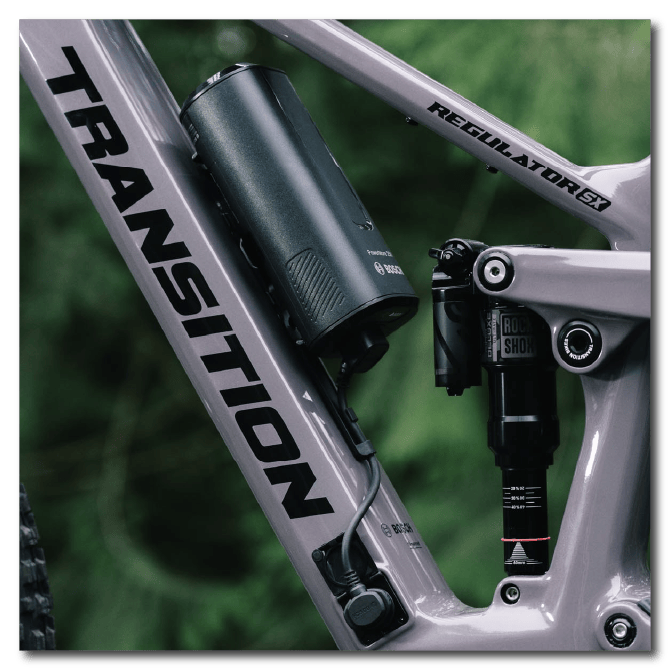

Bosch PowerMore Range Extender

Head into the backcountry with the additional 250wh range extender. Custom cable management keeps the connection clean and secure.

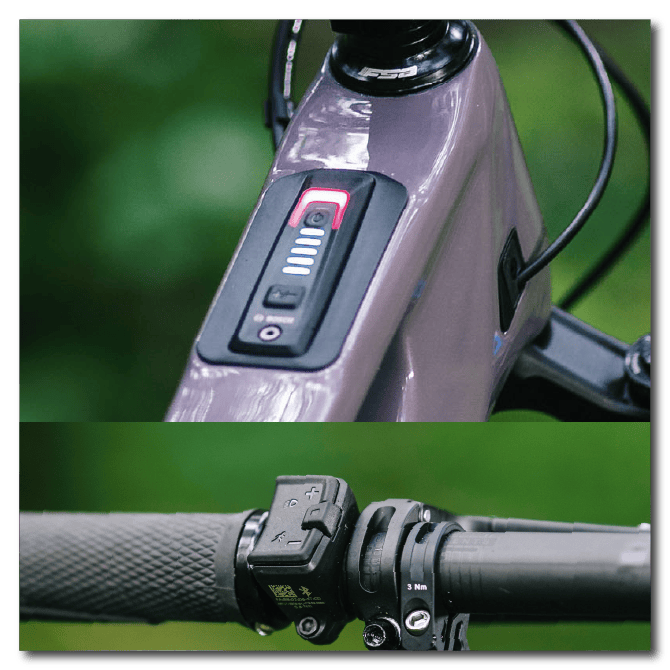

Display

Easily control the power modes and view battery life via the wireless Mini Remote and slim System Controller top tube display. This minimal display keeps you focused on the trail ahead, while providing all the necessary info you need to keep riding. Giving you everything you need, and nothing you don't.

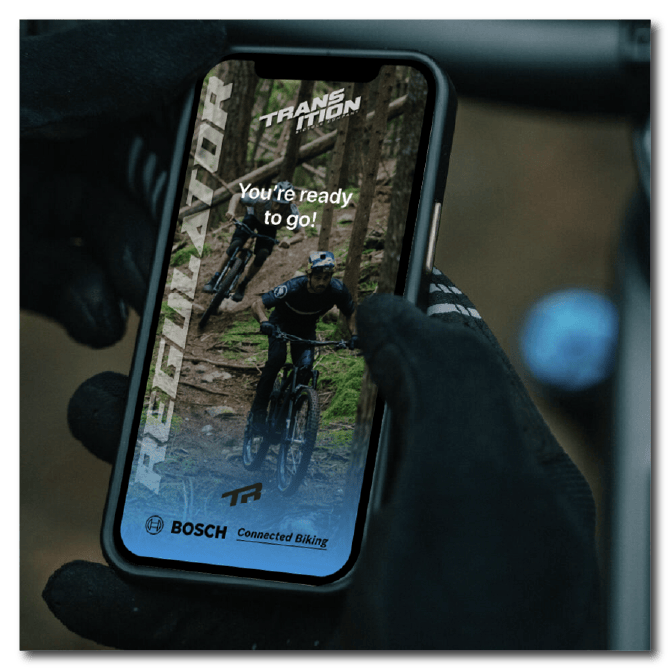

Bosch Flow App

For those looking to dig into the settings, the Bosch Flow app gives you full control and customization. Once paired with your Regulator, you can adjust the power level support and peak power from the convenience of your phone without any wires or a laptop.

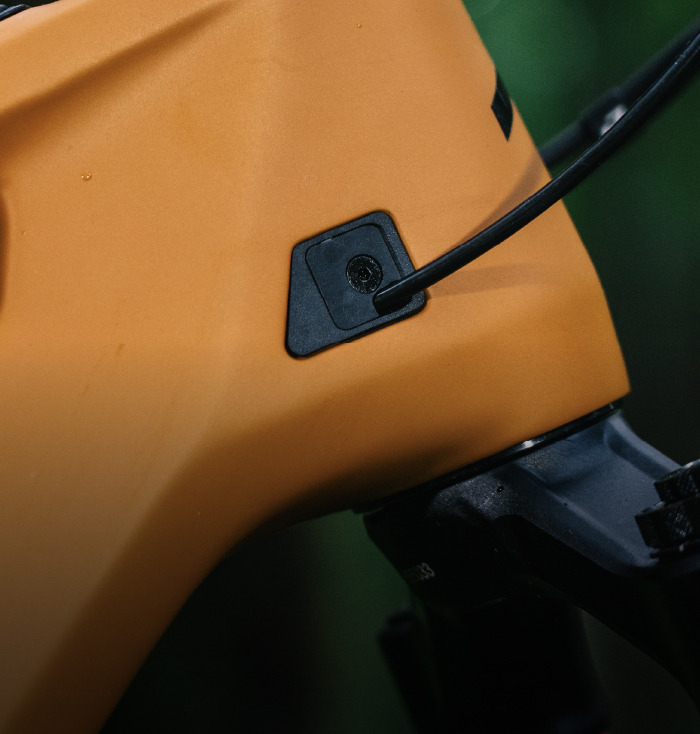

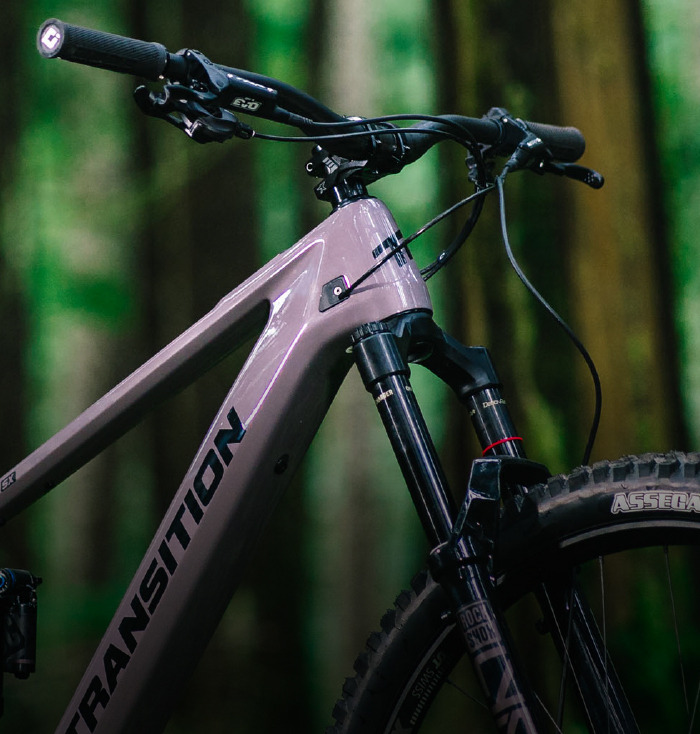

Clean Cable Routing

Cable routing ports are compatible with 0, 1 or 2 cables and allow brake to be run on either side.

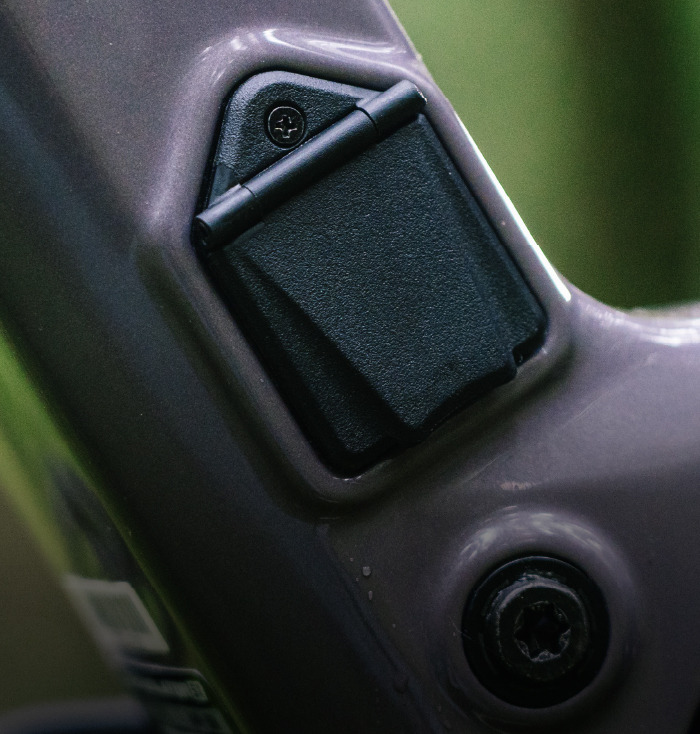

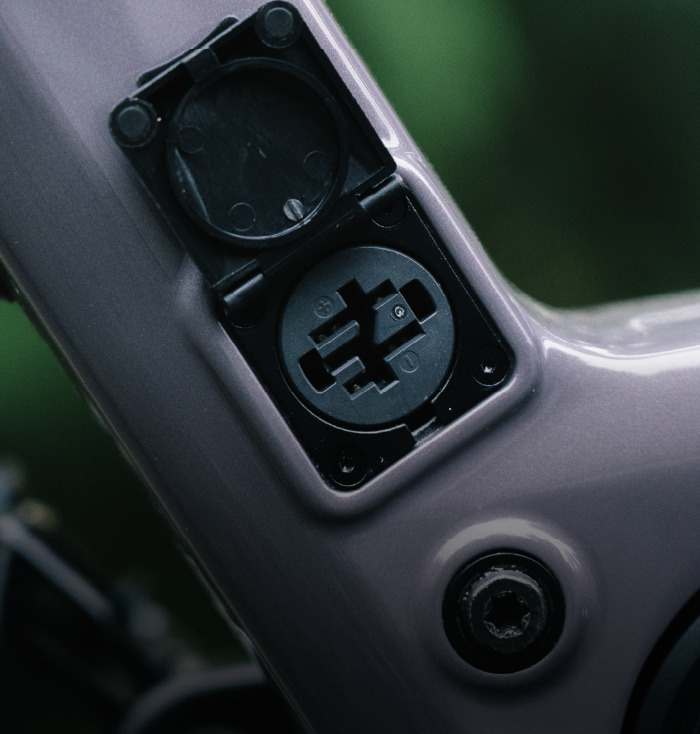

Charge Port

Our customer charge port houses 2 magnets to ensure it stays closed even on the roudiest descents

The door easily stays open for charging access or installing the range extender.

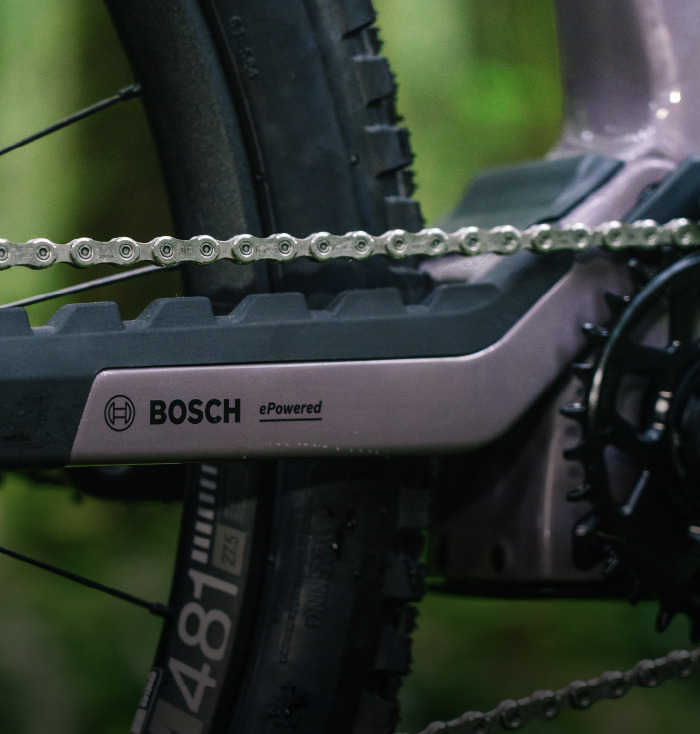

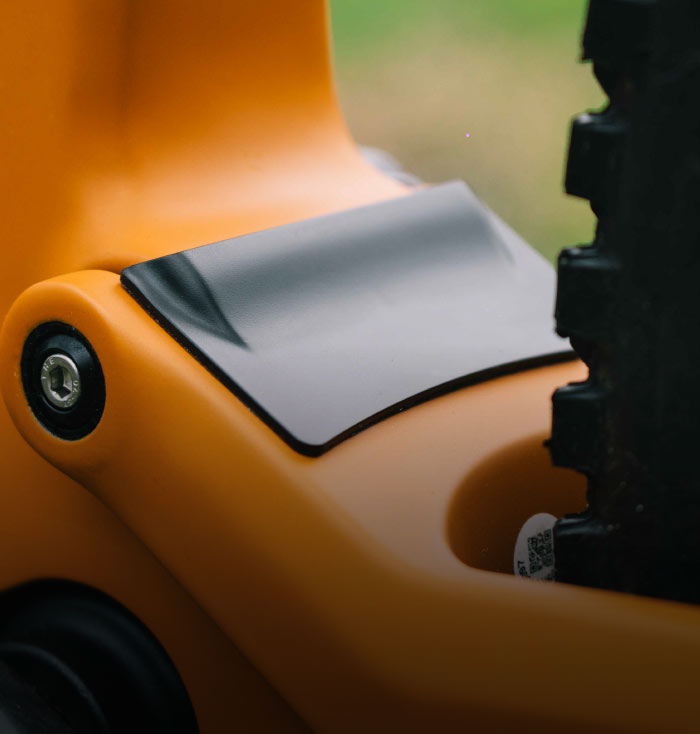

Integrated Protection

Large hollow lugs on the chainstay protector keep chain-slap to a minimum while protecting the frame.

A pre-installed mud-guard keeps dirt and grime out of the main pivot area.

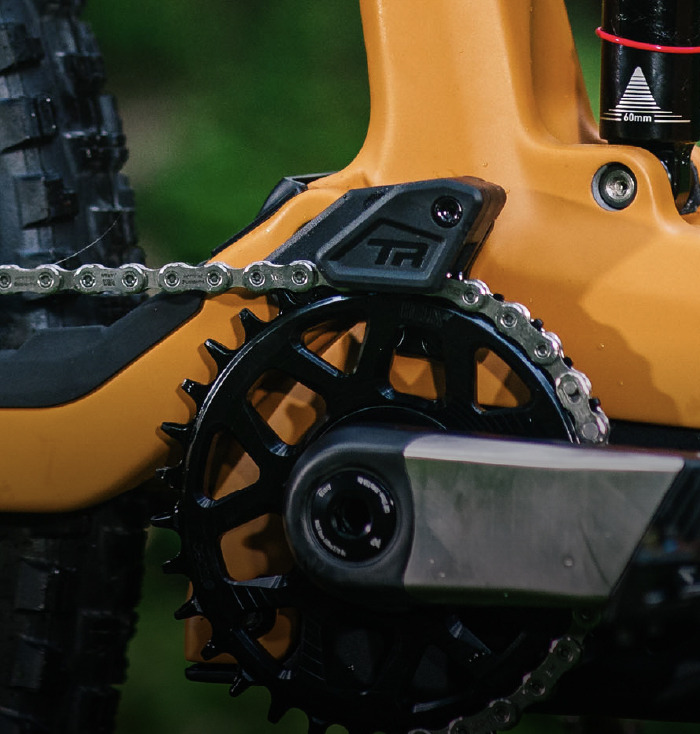

Integrated Chain Guide

Designed in-house, our pre-installed chainguide ensures you never miss a pedal stroke.

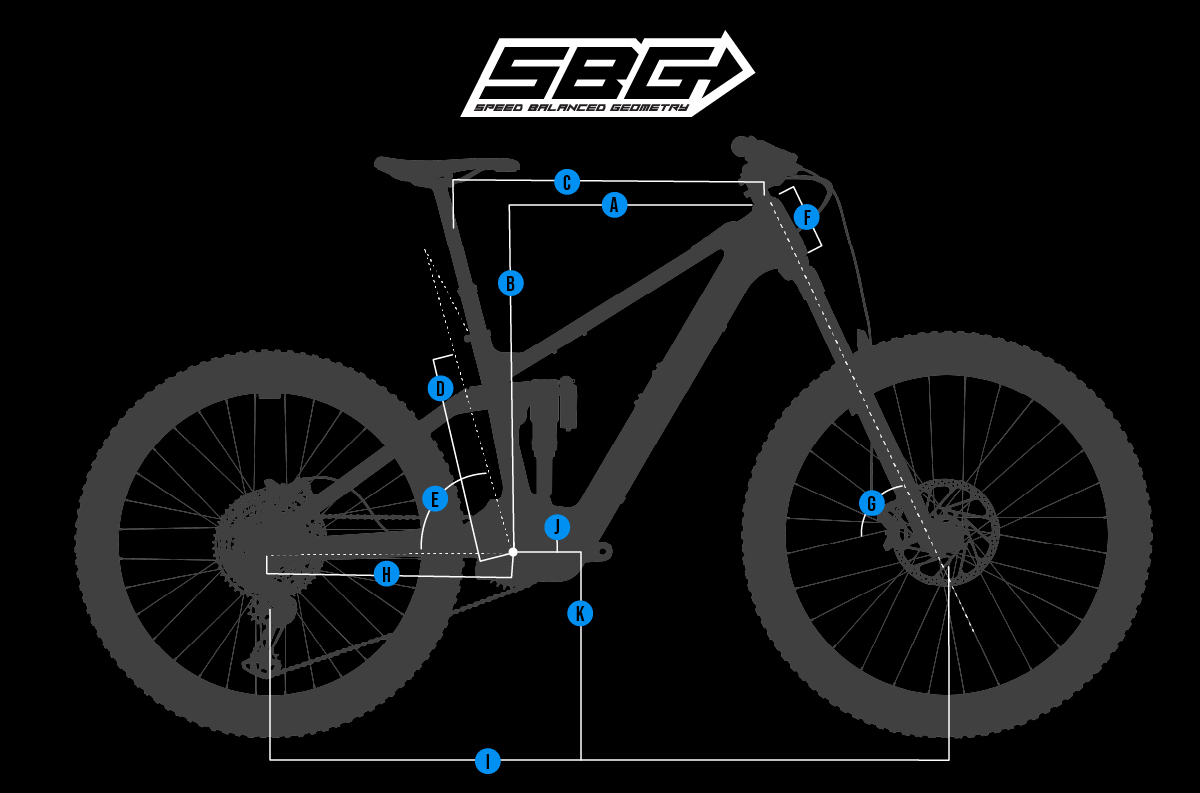

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.

SMMDLGXL
A. Reach425455480510
B. Stack623632641651
C. Effective Toptube Length551583610643
D. Seattube Length375400440470
E. Effective Seattube Angle78.878.578.277.9
Saddle Height For Effective Seattube Angle600660720780
Actual Seattube Angle75757575
Seattube Offset At Bottom Bracket41414141
F. Headtube Length105115125135
G. Headtube Angle64.564.564.564.5
H. Chainstay Length442442448448
I. Wheelbase1201123512711305
J. Bottom Bracket Drop25252525
K. Estimated Bottom Bracket Height350350350350

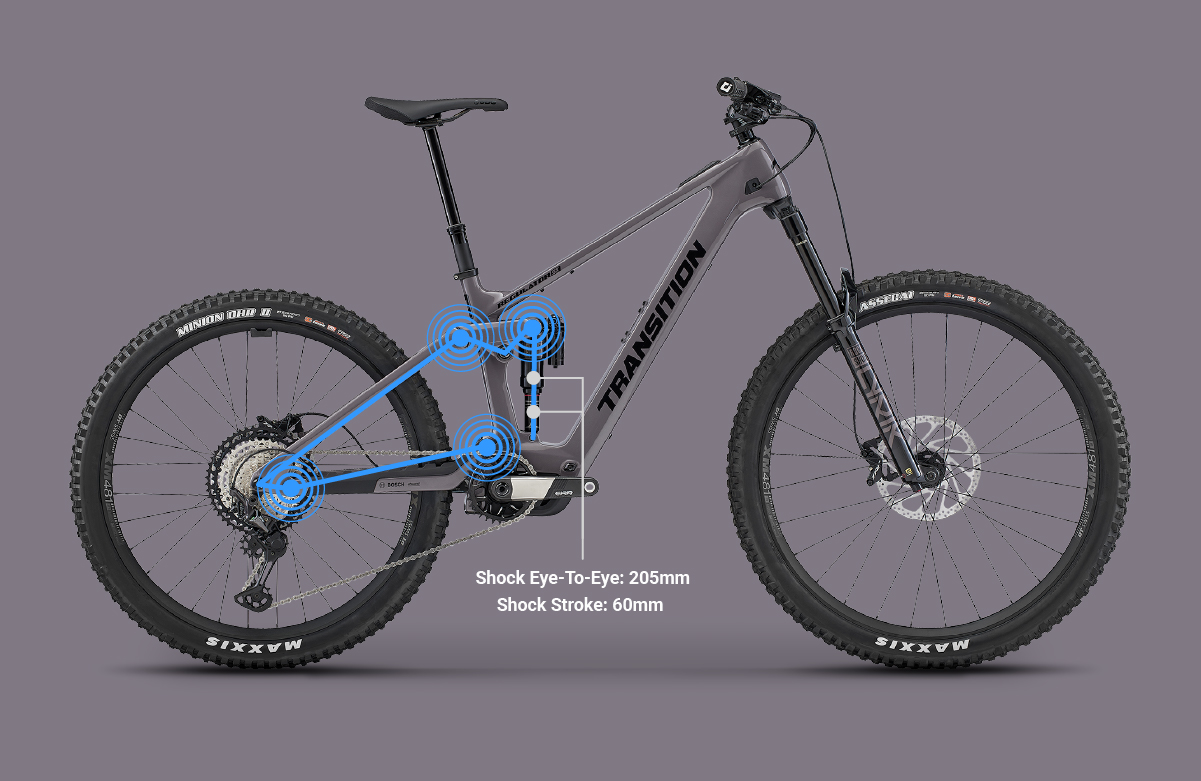

GiddyUp Suspension Design

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup.

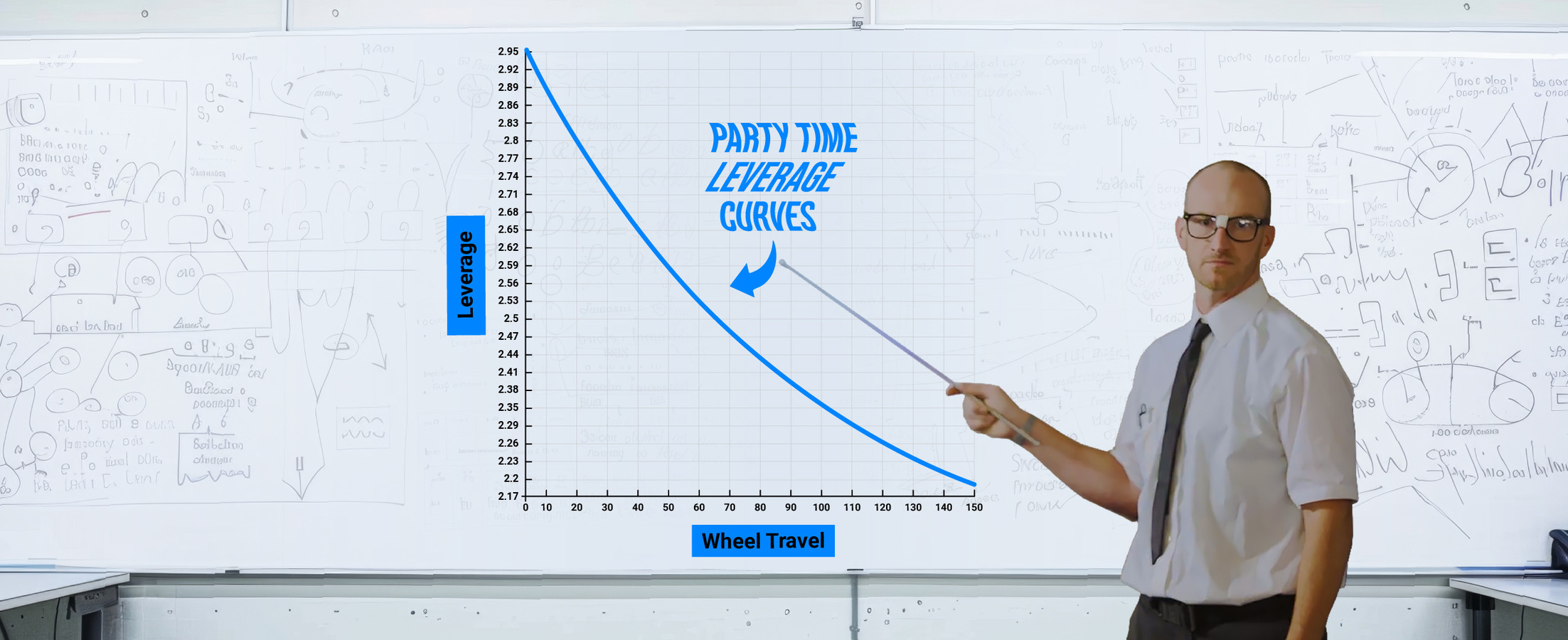

We did this by balancing a 27% progressive leverage curve with a consistent rate of change. Anti-squat is tuned to enhance pedalling performance and acceleration. Overall chain growth is moderate and reduces after sag so the chain tension doesn't get in the way of the suspension working.

This translates to supple small bump compliance and great mid-stroke support that gradually transitions into a subtle, yet supportive end-of-stroke ramp. The amount of consistent progression is carefully optimized for both air and coil shocks. Riders are able to add or remove volume spacers in air shocks to suit their individual riding style. The Regulator has 150 mm of rear wheel travel when used with the supplied 205 × 60 mm stroke shock. It is also possible to install a longer stroke shock of 205 x 65 mm to increase the rear wheel travel to 160 mm.

A wide usable sag range of 27 - 33% allows the rider to tune the feel of the bike; from poppy and playful, to planted for ploughing. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.

"After a month of living with and riding the Regulator SX, I can proudly say that my opinion of electric mountain bikes has changed for the better. With the smaller 400 Wh battery and compact, lightweight SX motor, it barely looks or feels like an eMTB. This disguise even encouraged me to pedal it without assistance for a few 20+ mile rides, and I won't hesitate to do it again." - Deven McCoy @ Bike
"The Regulator, in SX or CX trim, is an exceptionally fun and versatile ripper that rides less like an e-bike and more like a traditional mountain bike." - Shawn Spomer @ Vital MTB
"Both versions prioritize handling and playful, natural ride quality over pure plough-and-smash capability. That said, these bikes are still very capable—you could take them just about anywhere and have a good time." - Conor Barry @ Bikers Edge

Frame Specifications
Rear Travel:150 mm (Compatible with 160 mm)
Front Travel:160 mm
Wheel Size:29" Front / 27.5" Rear
Sizes:SM, MD, LG, XL
Frame Bearings:2 × 6903, 2 × 6902, 6 × 6802, 2 × 6900
Fork Axle To Crown:579 mm
Fork Offset:44 mm
Rear Shock Size:205 × 60 mm (compatible with 205 × 65 mm)
Shock Hardware:Trunnion Mount Top / 30 × 8 mm Bottom
Headset (Top):44 mm Zero Stack
Headset (Bottom):56 mm Zero Stack
Bb Shell:73 mm BSA Threaded
Chainline:55 mm
Rear Brake Mount:180 mm Post Mount, Max Rotor Size 223 mm
Rear Axle:Transition Axle For UDH, 12 × 148 mm Spacing
Seatpost Diameter:31.6 mm
Seat Clamp:Carbon: 37.0 mm
Max Seatpost Insertion:Small 235 mm | Medium 260 mm | Large 300 mm | X-Large 330 mm
Max Chainring Size: 34T Standard Single Ring
Max Tyre Size:27.5” × 2.6"
Rear Shock Sag:150 / 60 mm: 16-20 mm (26 - 32%)

Deore Components
FrameRegulator SX Carbon 150 mm
Wheel SizeMixed
Drive UnitBosch Performance Line SX (BDU31)
BatteryBosch CompactTube (400 Wh)
DisplayBosch System Controller
Assist SwitchBosch Wireless Mini Remote
Rear ShockRockShox SuperDeluxe Select
(205 × 60 mm)
ForkRockShox Lyrik Base
HeadsetFSA No.57 E
StemRaceFace Aefect R (40 mm)
HandlebarRaceFace Chester 35
SM (780 × 20)
MD/LG/XL (780 × 35)
GripsODI Elite Flow Lock-On
SaddleSDG Bel Air 3
SeatpostSDG Tellis
SM (150 mm)
MD (170 mm)
LG (200 mm)
XL (230 mm)
BrakesShimano Deore M6120 4 Piston
RotorsShimano RT66 (203 mm)
ShifterShimano Deore M6100 iSpec EV
DerailleurShimano Deore M6100 SGS 12 sp
CassetteShimano Deore M6100 (10-51T)
ChainShimano Deore M6100
CrankRaceFace Aeffect R E-MTB (160 mm)
ChainringE*Thirteen Helix Race Direct Mount (32T)
ChainguideTransition Integrated Top Guide
RimsWTB ST i30
SpokesPillar Double Butted
HubsNovatech D791 SB/D902 SB
Tyre/FrontMaxxis Assegai 3 C EXO/TR (2.5)
Tyre/RearMaxxis Minion DHRII 3 C EXO/TR (2.4)
IncludedBosch Charger
Tubeless Valves & Sealant
Color OptionsStormshadow Grey
Madrone Gold
WeightTBD
