Colnago G3X Carbon Gravel Complete Bike Shimano 820 2x12 Speed

£4,099.00£0.00
SSP

ETA: In stock

CodeColour CodeSizeStock SSP
G3XBK820-G3SB-55G3SB55C3 £4,099.00

Colour Options

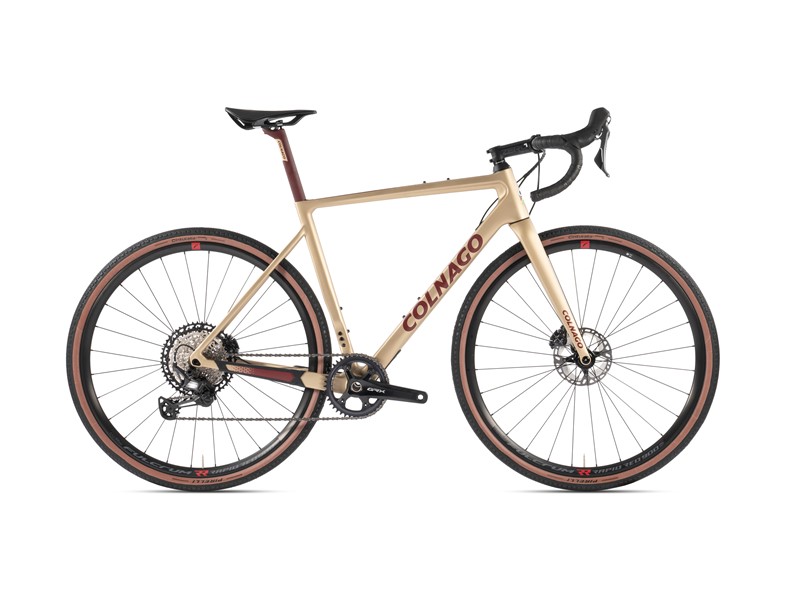

Colnago G3X Carbon Gravel Complete Bike Shimano 820 2x12 Speed


Please note, image is for colour representation. See below for full technical specifications.

Colnago G3X Carbon Gravel Complete Bike Shimano 820 2x12 G3SB. Designed for fast gravel/dirt track riding. A true adventure bike to enjoy natural landscapes around you. Equipped with Shimano 2x12 820 groupset

Are gravel bikes made to be fast?

Whether you want to enjoy natural landscapes or to push as fast as you can on a dirt road, the G3-X was designed to be your most trusty partner in your adventures. Guaranteed by Nathan Haas.G3X geometry has some noticeable differences especially focused for gravel. With longer chain stays, lower BB and longer top tube to bring the rider forward and ensure a more compact rider position. Typically we would advise on using a 10-20mm shorter stem.

Drivetrain & Tyres

Equipped with Shimano's latest Gravel specific group set (Shimano 820 2x12) and Pirelli Cinturato™ gravel specific tyres 700x40c to match the frame's enormous tyre clearances.

SeatPost

Based on the shape of the V3Rs seatpost, the semi truncated "D" shape adds a bit of aero performance, while giving better vertical compliance compared to the previous round 31.6mm seatpost.

Steering and comfort

Precise steering with comfort for long days riding is achieved with a lower bottom bracket height and longer wheelbase.

Bottom Bracket

Designed around our proven ThreadFit82.5, which is basically a PressFit with removable base sleeves, the bottom bracket lug is now more complex than ever. The cable guide, which was typically a bolt-on plastic part, is now moulded into the lug - to save grams as well as to offer the biggest possible radius for the best shifting performance

Frame protection

To help protect the frame from impacts, Colnago has added a replaceable rubber chainstay protector along with a bumper bash guard to the down tube to protect the carbon from rock strikes which also allows the fitment of a third bottle cage.

Specifications
Frame COLNAGO G3X FRAME G3X
Fork COLNAGO G3X FORK G3X
Bottom Bracket SHIMANO SM-BB72-41B BB86 SM-BB72-41B, PRESS FIT ROAD
Handlebar DEDAELEMENTI GRAVEL100 Deda Gravel Alloy 420/440/460W Diameter 31.75 + DI2 Holes
Stem DEDAELEMENTI ZERO 1 90/100/110/120, Clamp Diameter 31.75
Bar tape COLNAGO Black bartape
WHEELSET SHIMANO WH-RS370-TL-FR12 Shimano RS370 FRONT/REAR,12SP,CENTER-LOCK
F/Tyre PIRELLI Cinturato™ GRAVEL H 700C x 40C
R/Tyre PIRELLI Cinturato™ GRAVEL H 700C x 40C
Chain SHIMANO CN-M8100 122 Link,12SP, with Quick-Link
CRANKSET SHIMANO FC-RX820-2 31t / 48t 170/172.5/175,12-SPEED GRX
F/Brake SHIMANO BR-RX820 GRX RX820 Lever
R/Brake SHIMANO BR-RX820 GRX RX820 Lever
F/Rotor SHIMANO RT-MT800 φ160MM,CENTER-LOCK,W/LOCK RING
R/Rotor SHIMANO RT-MT800 φ160MM,CENTER-LOCK,W/LOCK RING
F/Mech SHIMANO FD-RX820 GRX BRAZE-ON TYPE, 12-SPEED
R/Mech SHIMANO RD-RX820 GRX Rear Mech,12SP
Cassette SHIMANO CS-HG710-12 11-12-13-14-15-17-19-21-24-28-32-36T,12SP,Cassette
Saddle PROLOGO KAPPA RS KAPPA RS
Seat Post COLNAGO COLNAGO G3X Carbon seatpost
