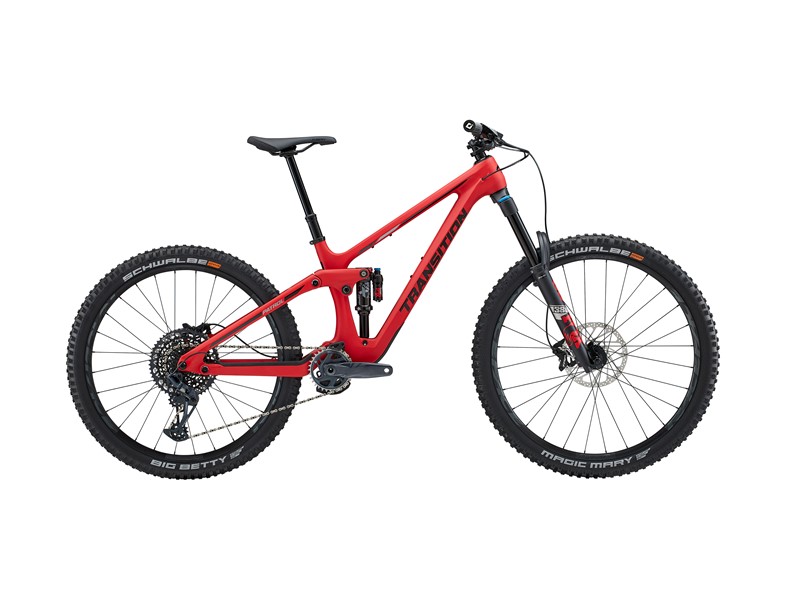

Transition Patrol Carbon MTB GX Complete Bike
Colour | Size | Group | Stock | SSP |
---|---|---|---|---|
Bonfire Red | M | GX | 1 | £7,199.00 |
Bonfire Red | L | GX | 3 | £7,199.00 |
Bonfire Red | XL | GX | 3 | £7,199.00 |
Colour Options
Transition Patrol Carbon MTB GX Complete Bike
The Pure Bred Party Animal
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail.
Being one of the longest standing bikes in our line-up, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Speed Balanced Geometry
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.
SM | MD | LG | XL | |
---|---|---|---|---|
HIGH/LOW | HIGH/LOW | HIGH/LOW | HIGH/LOW | |
A. REACH | 420 / 415 | 455 / 450 | 480 / 475 | 510 / 505 |
B. STACK | 623 / 628 | 623 /628 | 632 / 637 | 641 / 646 |
C. EFFECTIVE TT LENGTH | 540 / 543 | 575 / 578 | 603 / 606 | 636 / 639 |
D. SEAT TUBE LENGTH | 360 | 390 | 430 | 460 |
E. EFFECTIVE ST ANGLE | 79.6° / 79.1° | 78.8° / 78.3° | 78.1° / 77.6° | 77.5° / 77° |
SADDLE HEIGHT FOR EFFECTIVE ST ANGLE | 600 | 660 | 720 | 780 |
ACTUAL ST ANGLE | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° | 70.5° / 70° |
SEAT TUBE OFFSET AT BB | 100 | 100 | 100 | 100 |
F. HEAD TUBE LENGTH | 100 | 100 | 110 | 120 |
G. HEAD TUBE ANGLE | 63.5° / 63° | 63.5° / 63° | 63.5° / 63° | 63.5° / 63° |
H. CHAINSTAY LENGTH | 434 / 436 | 434 / 436 | 440 / 442 | 440 / 442 |
I. WHEELBASE | 1196 / 1198 | 1231 / 1233 | 1266 / 1268 | 1301 / 1303 |
J. BOTTOM BRACKET DROP | 15 / 22 | 15 / 22 | 15 / 22 | 15 / 22 |
K. ESTIMATED BB HEIGHT | 340 / 333 | 340 / 333 | 340 / 333 | 340 / 333 |
L. STAND OVER HEIGHT | 675 / 685 | 690 / 700 | 705 / 715 | 720 / 730 |
M. FORK OFFSET | 44 | 44 | 44 | 44 |
Giddyup Suspension Design
We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.
With nearly 24% progression and the most current evolution of our GiddyUp suspension kinematic, the Patrol has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.
The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Patrol has 160mm of rear wheel travel when used with the supplied 205mm x 60mm stroke shock. It is also possible to install a longer, 205mm x 65mm stroke shock to increase the rear wheel travel to 170mm if you are after a longer travel experience.
A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
Specifications
Carbon GX | |
---|---|
FRAME | Patrol Carbon 160mm |
FRAME COLORS | Bonfire Red / Moonshadow |
REAR SHOCK | Fox Float X Performance Elite (205x60) |
FORK | Fox Float 38 Performance Elite 160mm Travel/44mm Offset |
HEADSET | FSA NO.55R/57 |
STEM | ANVL Swage (40mm) |
HANDLEBAR | ANVL Mandrel Alloy 35 SM (800x20) MD/LG/XL (800x30) |
GRIPS | ODI Elite Flow |
SADDLE | SDG Bel Air 3 |
SEATPOST | OneUp Dropper Post |
BRAKES | TRP DH-R Evo |
ROTORS | TRP R1 2.3 (203mm) |
SHIFTER | SRAM GX Eagle |
DERAILLEUR | SRAM GX Eagle |
CASSETTE | SRAM XG 1275 (10-52t) |
CHAIN | SRAM GX Eagle |
CHAINGUIDE | OneUp Bash Guide |
CRANK | SRAM GX Eagle DUB (32t/165mm) |
RIMS | RaceFace Aeffect R |
SPOKES | RaceFace 2.0/1.7/2.0 |
HUBS | RaceFace Trace 28H |
TIRE/FRONT | Schwalbe Magic Mary, Super Trail, Soft (29x2.4) |
TIRE/REAR | Schwalbe Big Betty, Super Trail, Soft (27.5x2.4) |
INCLUDED | Tubeless Valves & Sealant |
WEIGHT | 33.0 lbs / 14.97 kg (Size MD) |
