Transition Repeater Carbon MTB GX Complete Ebike
Colour | Size | Group | Stock | SSP |
---|---|---|---|---|
Mossy Green | S | GX | 0 | £8,699.00 |
Mossy Green | M | GX | 1 | £8,699.00 |
Mossy Green | L | GX | 0 | £8,699.00 |
Mossy Green | XL | GX | 0 | £8,699.00 |
Colour Options

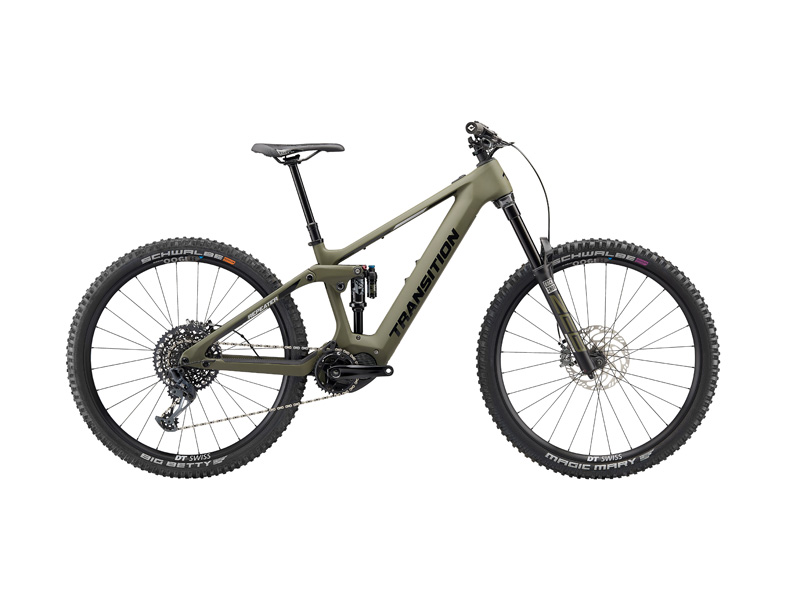

Transition Repeater Carbon MTB GX Complete Ebike
Plug into the vibe
Up, down, all around. The Repeater loves it all.
Buckle up and get ready to charge, the Repeater is down for anything. With 160mm travel, 29" wheels, the Shimano EP8 motor system and a 630Wh battery, you can maximize fun on the ups and the downs. Whether it's a quick rip after work, ditching the shuttle truck, or just the pure joy of exploring that you are after, the Repeater loves it all. Like all of our other beloved bikes, the Repeater has SBG geometry and our GiddyUp suspension, so you'll feel right at home the moment you turn on the power.
Speed Balanced Geometry
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
SM | MD | LG | XL | |
---|---|---|---|---|
A. Reach | 425mm | 455mm | 480mm | 510mm |
B. Stack | 631mm | 631mm | 640mm | 649mm |
C. Effective Tt Length | 559mm | 589mm | 617mm | 650mm |
D. Seat Tube Length | 375mm | 400mm | 440mm | 470mm |
E. Effective St Angle | 78.4° | 77.9° | 77.4° | 77.1° |
Saddle Height For Effective St Angle | 600mm | 660mm | 720mm | 780mm |
Actual St Angle | 72.5° | 72.5° | 72.5° | 72.5° |
Seat Tube Offset At Bb | 65mm | 65mm | 65mm | 65mm |
F. Head Tube Length | 110mm | 110mm | 120mm | 130mm |
G. Head Tube Angle | 64° | 64° | 64° | 64° |
H. Chainstay Length | 455mm | 455mm | 455mm | 455mm |
I. Wheelbase | 1221mm | 1251mm | 1280mm | 1315mm |
J. Bottom Bracket Drop | 30mm | 30mm | 30mm | 30mm |
K. Estimated Bb Height | 340mm | 340mm | 340mm | 340mm |
L. Stand Over Height | 705mm | 715mm | 720mm | 725mm |
M. Fork Offset | 44mm | 44mm | 44mm | 44mm |
Specifications
GX Carbon | |
---|---|
Frame | Repeater Carbon 160mm |
Drive Unit | Shimano DU-EP800 |
Battery | Shimano BT-E8036 (630Wh) |
Display | Shimano SC-EM800 |
Assist Switch | Shimano SW-EM800 |
Rear Shock | Fox Float X Performance Elite (205x65mm) |
Fork | RockShox ZEB Ultimate 160mm, 44mm Offset, 1.8 taper |
Headset | Acros ICR |
Stem | ANVL Swage (40mm) |
Handlebar | ANVL Mandrel Alloy SM/MD (800x20) LG (800x30) XL (800x40) |
Grips | ODI Elite Flow Lock-On |
Saddle | ANVL Forge Cromo |
Seatpost | OneUp Dropper Post SM (150mm) MD (180mm) LG/XL (210mm) |
Brakes | Magura MT7 w/ HC1 Levers |
Rotors | Magura MDR-C (203mm) |
Shifter | SRAM GX Eagle Single Click |
Derailleur | SRAM GX Eagle |
Cassette | SRAM XG 1275 (10-52T) |
Chain | SRAM GX Eagle |
Crank | Shimano EM900 (34T/160mm) |
Chain Guide | OneUp STEPS |
Rims | DT Swiss Hybrid H 1900 |
Spokes | DT Swiss Hybrid 1 |
Hubs | DT Swiss Hybrid 370 |
Tire/Front | Schwalbe Magic Mary, Super Gravity, Ultra Soft (29x2.4) |
Tire/Rear | Schwalbe Big Betty, Super Gravity, Soft (29x2.4) |
Included | Shimano EC-E6002 Charger Tubeless Valves & Stans Sealant (6oz) |
Weight | 22.3kg / 49.1lbs (Size MD) |
