Transition Repeater Carbon MTB NX Complete Ebike

£7,499.00£0.00
SSP

Code: 01.22.11.4750

ETA: In stock

ColourSizeGroupStock SSP
Mossy GreenSNX3 £7,499.00
Mossy GreenMNX0 £7,499.00
Mossy GreenLNX0 £7,499.00
Mossy GreenXLNX0 £7,499.00

Colour Options

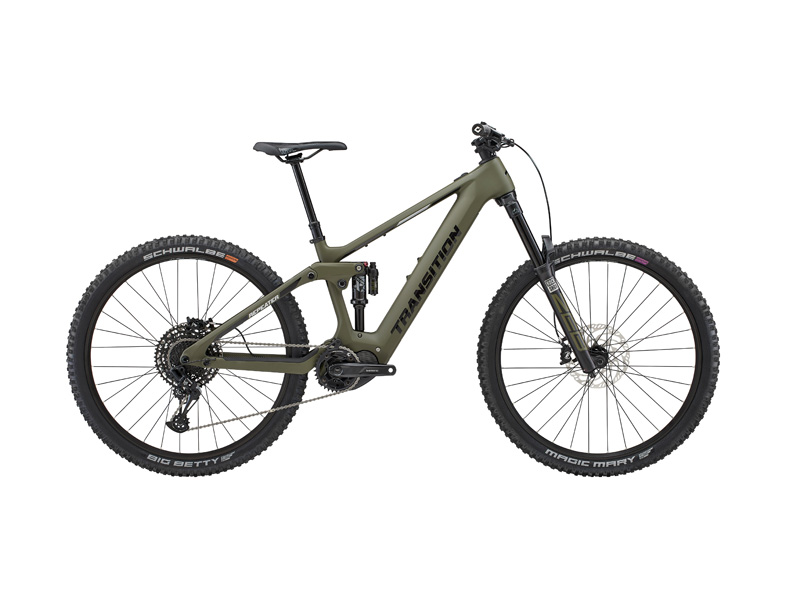

Transition Repeater Carbon MTB NX Complete Ebike


Plug into the vibe

Up, down, all around. The Repeater loves it all.

Buckle up and get ready to charge, the Repeater is down for anything. With 160mm travel, 29" wheels, the Shimano EP8 motor system and a 630Wh battery, you can maximize fun on the ups and the downs. Whether it's a quick rip after work, ditching the shuttle truck, or just the pure joy of exploring that you are after, the Repeater loves it all. Like all of our other beloved bikes, the Repeater has SBG geometry and our GiddyUp suspension, so you'll feel right at home the moment you turn on the power.

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.

Repeater Geometry

SMMDLGXL
A. Reach425mm455mm480mm510mm
B. Stack631mm631mm640mm649mm
C. Effective Tt Length559mm589mm617mm650mm
D. Seat Tube Length375mm400mm440mm470mm
E. Effective St Angle78.4°77.9°77.4°77.1°
Saddle Height For Effective St Angle600mm660mm720mm780mm
Actual St Angle72.5°72.5°72.5°72.5°
Seat Tube Offset At Bb65mm65mm65mm65mm
F. Head Tube Length110mm110mm120mm130mm
G. Head Tube Angle64°64°64°64°
H. Chainstay Length455mm455mm455mm455mm
I. Wheelbase1221mm1251mm1280mm1315mm
J. Bottom Bracket Drop30mm30mm30mm30mm
K. Estimated Bb Height340mm340mm340mm340mm
L. Stand Over Height705mm715mm720mm725mm
M. Fork Offset44mm44mm44mm44mm

Specifications

NX Carbon
FrameRepeater Carbon 160mm
Drive UnitShimano DU-EP800
BatteryShimano BT-E8036 (630Wh)
DisplayShimano SC-EM800
Assist SwitchShimano SW-EM800
Rear ShockFox Float X Performance
(205x65mm)
ForkRockShox ZEB R
160mm, 44mm Offset, 1.8 taper
HeadsetAcros ICR
StemRaceFace Aeffect R (40mm)
HandlebarRaceface Chester Alloy
SM/MD (780x20) LG/XL (780x35)
GripsODI Elite Flow Lock-On
SaddleANVL Forge Cromo
SeatpostOneUp Dropper Post
SM (150mm) MD (180mm) LG/XL (210mm)
BrakesMagura MT5 w/ HC1 Levers
RotorsMagura MDR-C (203mm)
ShifterSRAM NX Eagle Single Click
DerailleurSRAM NX Eagle
CassetteSRAM PG 1230 (10-50T)
ChainSRAM NX Eagle
CrankShimano EM600
(34t/160mm)
Chain GuideOneUp STEPS
RimsStans Flow D
SpokesPillar 2.0mm Straight Gauge
HubsNovatec D791SB-B15/D902SB-B12
Tire/FrontSchwalbe Magic Mary, Super Gravity, Ultra Soft (29x2.4)
Tire/RearSchwalbe Big Betty, Super Gravity, Soft (29x2.4)
IncludedShimano EC-E6002 Charger
Tubeless Valves & Stans Sealant (6oz)
Weight23.1kg / 50.8lbs (Size MD)
