Transition Spire Alloy MTB GX Complete Bike

£5,299.00£0.00
SSP

Code: 01.23.11.4612

ETA: In stock

ColourSizeGroupStock SSP

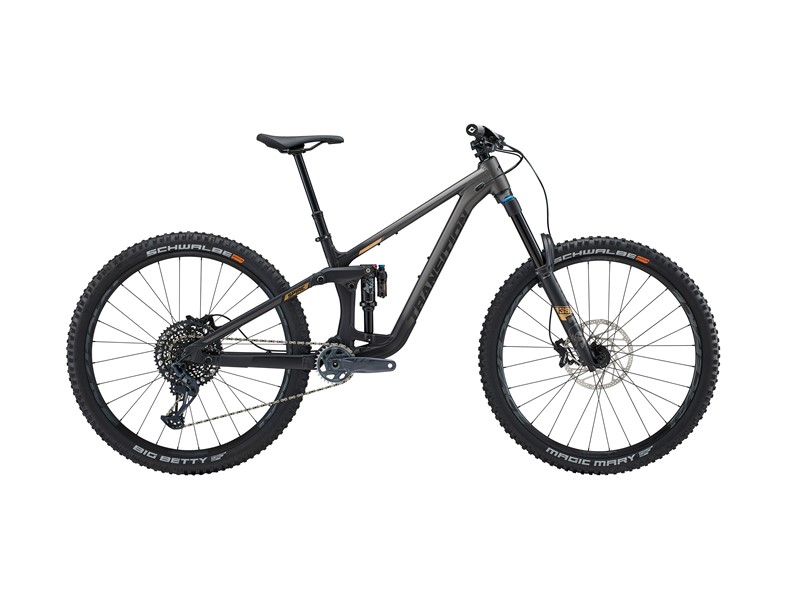

Fade to BlackSGX0 £5,299.00
Fade to BlackMGX3 £5,299.00
Fade to BlackLGX4 £5,299.00
Fade to BlackXLGX2 £5,299.00
Fade to BlackXXLGX1 £5,299.00

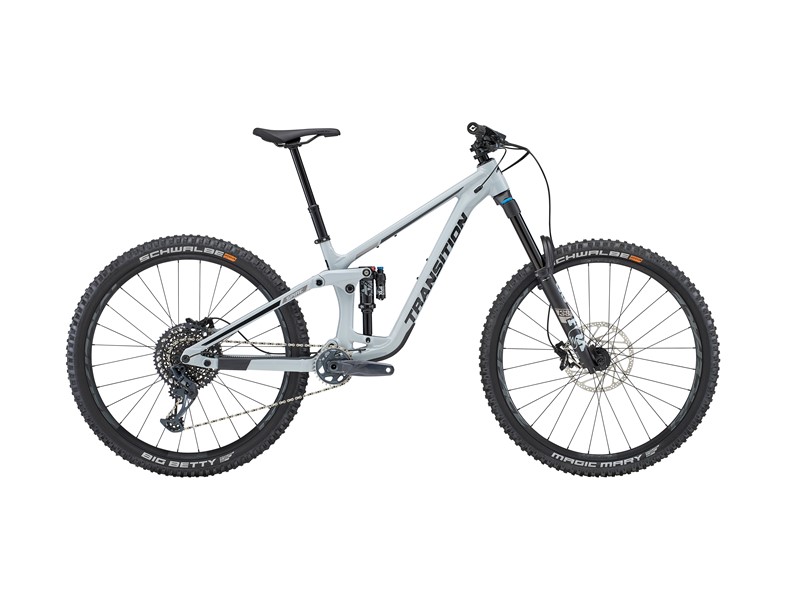

Colour Options

Transition Spire Alloy MTB GX Complete Bike


The Nimble Bruiser

Take on the biggest terrain without the penalty, Long travel doesn't have to mean single purpose.

The Spire blends DH bike capability with mid-travel efficiency in such a way it's almost two bikes in one. A delicately tuned pedalling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind-bending ride. Happily climb up to your favourite challenging descent, then cruise on over to you local flow trail and you'll be rewarded on both ends of the spectrum. Don't be fooled though, while it's no on-trick-pony, the Spire lives to push you limits. Get in-Spired.

Specifications
FrameSpire Alloy 170mm
Wheel Size29"
Rear ShockFox Float X Performance Elite
(205x65mm)
ForkFox Float 38 Performance Elite
HeadsetFSA NO.55R/57
StemANVL Swage (40mm)
HandlebarANVL Mandrel Alloy 35
SM(800x20)
MD/LG/XL(800x30)
XXL(800x40)
GripsODI Elite Flow
SaddleSDG Bel Air 3
SeatpostOneUp Dropper Post
BrakesTRP DH-R EVO
RotorsTRP R1 2.3 (223/203mm)
ShifterSRAM GX Eagle
DerailleurSRAM GX Eagle
CassetteSRAM XG 1275 (10-52t)
ChainSRAM GX Eagle
CrankSRAM GX Eagle DUB
(30T/165mm)
ChainguideOneUp Bash Guide
RimsRaceFace Aeffect R
SpokesRaceFace 2.0/1.7/2.0
HubsRaceFace Trace 28H
Tyre/FrontSchwalbe Magic Mary, Super Trail, Soft (29x2.4)
Tyre/RearSchwalbe Big Betty, Super Trail, Soft (29x2.4)
IncludedTubeless Valves & Sealant
WeightTBD

Frame Features

  1. Lifetime Warranty
    At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.
  2. Frame Material
    The Spire carbon uses premium Japanese Toray fibre using a unique latex coated EPS moulding process to create tighter edge radius control using less material. The Spire alloy features a frame made from tough and dependable heat treated 6061 aluminium to strike the right balance of strength, durability and ride quality.
  3. Pivot Technology
    Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.
  4. Frame Protection
    We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.
  5. Geo Adjust Chip
    Change the attitude of the bike with a simple flip of a chip. Our high and low settings give you two very usable geo settings to suite your riding style. Our high setting is comparable to most other companies low setting so there is a high shred warning in effect.
  6. Size Specific Chainstays
    The Spire has two size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
  7. Enduro Max Bearings
    We exclusively use Enduro Max suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.
  8. Gear Accessory Mount
    Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.
  9. Dual Crown Fork Compatible
    Both the carbon and alloy frame options are fully dual crown compatible for those wanting to dip their toes into the DH world.
  10. Tyre Clearance
    Ample clearance for mud and tyres up to 2.6" width.
  11. Press-in Headset
    Our ZS56/ZS56 press in headset gives you the freedom to use reach adjust and angle adjust headset for maximum adjustability. Adjustable headsets are not supplied with Spire framesets or complete bikes.
  12. Water Bottle Compatibility
    We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.

Geometry

Small
High | Low
Medium
High | Low
Large
High | Low
Extra Large
High | Low
XX Large
High | Low
A. Reach430 | 425 mm460 | 455 mm485 | 480 mm510 | 505 mm535 | 530 mm
B. Stack619 | 624 mm619 | 624 mm628 | 633 mm637 | 642 mm646 | 651 mm
C. Effective Tt Length547 | 550 mm577 | 580 mm605 | 608 mm633 | 636 mm661 | 664 mm
D. Seat Tube Length360 mm390 mm430 mm460 mm490 mm
E. Effective St Angle79.6° | 79.1° mm78.8° | 78.3°78.1° | 77.6°77.5° | 77°77.2° | 76.7°
Saddle Height For Effective St Angle600 mm660 mm720 mm780 mm820 mm
Actual St Angle70.5° | 70°70.5° | 70°70.5° | 70°70.5° | 70°70.5° | 70°
Seat Tube Offset At Bb100 mm100 mm100 mm100 mm100 mm
F. Head Tube Length100 mm100 mm110 mm120 mm130 mm
G. Head Tube Angle63° | 62.5°63° | 62.5°63° | 62.5°63° | 62.5°63° | 62.5°
H. Chainstay Length446 | 448 mm446 | 448 mm446 | 448 mm452 | 454 mm452 | 454 mm
I. Wheelbase1227 | 1229 mm1257 | 1259 mm1287 | 1289 mm1322 | 1324 mm1352 | 1354 mm
J. Bottom Bracket Drop25 | 32 mm25 | 32 mm25 | 32 mm25 | 32 mm25 | 32 mm
K. Estimated Bb Height350 | 343 mm350 | 343 mm350 | 343 mm350 | 343 mm350 | 343 mm
L. Stand Over Height685 | 680 mm700 | 695 mm715 | 710 mm730 | 725 mm745 | 740 mm
M. Fork Offset44 mm44 mm44 mm44 mm44 mm

Giddy Up Suspension Design

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

With nearly 23% progression and the most current evolution of our GiddyUp suspension kinematic, the Spire has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedaling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.

The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Spire has 170mm of rear wheel travel when used with the supplied 205mm x 65mm stroke shock. It is also possible to install a shorter, 205mm x 60mm stroke shock to decrease the rear wheel travel to 160mm if you are after a shorter travel experience.

A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
