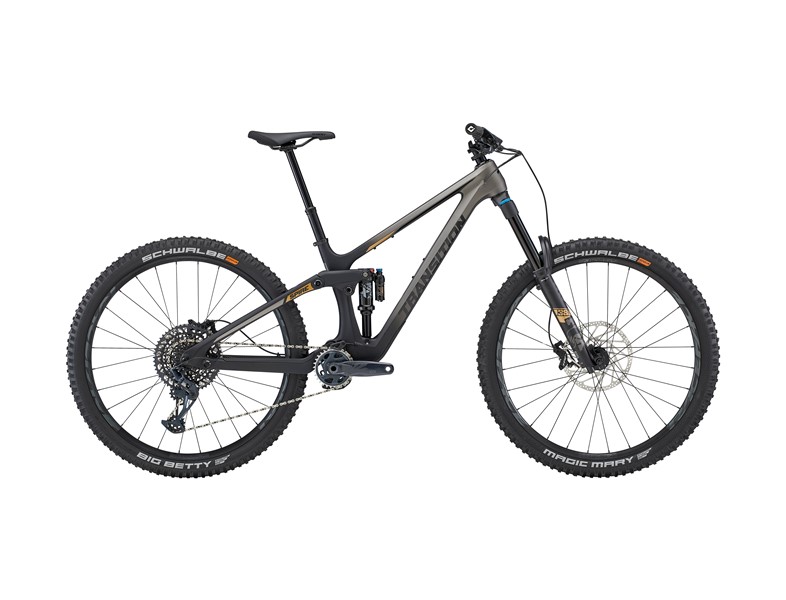

Transition Spire Carbon MTB GX Complete Bike

£7,199.00£0.00
SSP

Code: 01.23.11.4532

ETA: In stock

ColourSizeGroupStock SSP
Fade to BlackSGX0 £7,199.00
Fade to BlackMGX2 £7,199.00
Fade to BlackLGX1 £7,199.00
Fade to BlackXLGX2 £7,199.00
Fade to BlackXXLGX2 £7,199.00

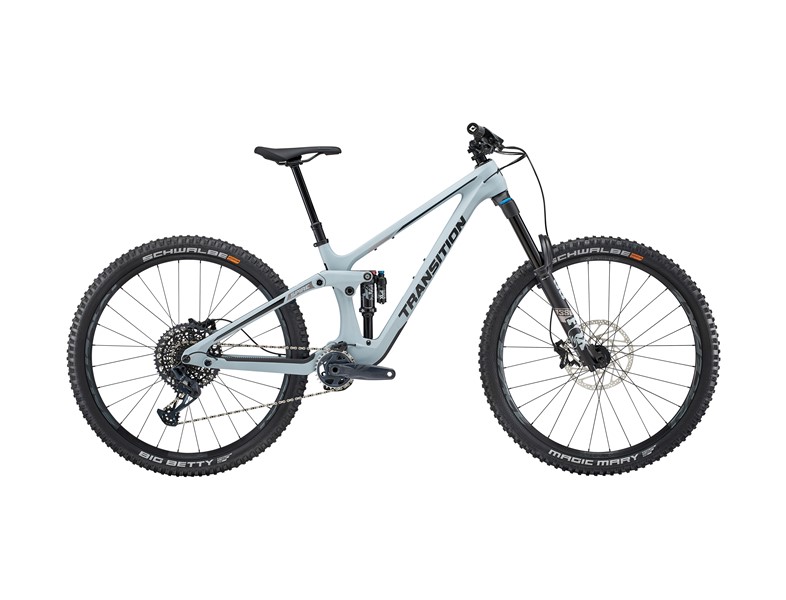

Colour Options

Transition Spire Carbon MTB GX Complete Bike


The Nimble Bruiser

Take on the biggest terrain without the penalty, Long travel doesn't have to mean single purpose

The Spire blends DH bike capability with mid-travel efficiency in such a way it's almost two bikes in one. A delicately tuned pedalling and pumping platform, super supple beginning stroke sensitivity and all the travel you could ask for makes for a mind bending ride. Happily climb up to your favourite challenging descent, then cruise on over to your local flow trail and you'll be rewarded on both ends of the spectrum. Don't be fooled though, while it's no one-trick pony, the Spire lives to push your limits. Get in-Spired.

Specifications
Frame Spire Carbon 170mm
Wheel Size 29"
Rear Shock Fox Float X Performance Elite
(205x65mm)
Fork Fox Float 38 Performance Elite
(170mm)
Headset FSA NO.55R/57
Stem ANVL Swage (40mm)
Handlebar ANVL Mandrel Alloy 35
SM(800 × 20)
MD/LG/XL(800 × 30)
XXL(800 × 40)
Grips ODI Elite Flow
Saddle SDG Bel Air 3
Seatpost OneUp Dropper Post
Brakes TRP DH-R EVO
Rotors TRP R1 2.3 (223/203mm)
Shifter SRAM GX Eagle
Derailleur SRAM GX Eagle
Cassette SRAM XG 1275 (10-52t)
Chain SRAM GX Eagle
Crank SRAM GX Eagle DUB
(30T/165mm)
Chainguide OneUp Bash Guide
Rims RaceFace Aeffect R
Spokes RaceFace 2.0/1.7/2.0
Hubs RaceFace Trace 28h
Tyre/Front Schwalbe Magic Mary, Super Gravity, Ultra Soft (29x2.4)
Tyre/Rear Schwalbe Big Betty, Super Gravity, Soft (29x2.4)
Included Tubeless Valves & Sealant
Weight TBD

Frame Features

  1. Lifetime Warranty
    At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.
  2. Frame Material
    The Spire Carbon uses premium Japanese Toray fibre using a unique latex coated EPS moulding process to create tighter edge radius control using less material.
  3. Pivot Technology
    Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shield prevent main pivot bearing contamination when washing your bike or riding in wet conditions.
  4. Frame Protection
    We keep your bike rides quiet and your frame safe from damage with full integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and saeatstay protection the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.
  5. Geo Adjust Chip
    Change the attitude of the bike with a simple flip of a chip. Our high and low settings give you two very usable geo settings to suit your riding style. Our high setting is comparable to most other company's low setting so there's a high shred warning in effect!
  6. Size Specific Chainstays
    The Spire ahs tow size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
  7. Enduro Max Bearings
    We exclusively use Enduro Max suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.
  8. Gear Accessory Mount
    Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.
  9. Dual Crown Fork Compatible
    Both the carbon and alloy frame options are fully dual crown compatible for those wanting to dip their toes into the DH world.
  10. Tyre Clearance
    Ample clearance for mud and tyres up to 2.6" width.
  11. Use Friendly Cable Routing
    To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.
  12. Press In Headset
    Our ZS56/ZS56 press in headset gives you the freedom to use reach adjust and angle adjust headsets for maximum adjustability.
  13. Water Bottle Compatibility
    We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making to to your mouth.
  14. Universal Derailleur Hanger
    The Spire features a SRAM Universal Derailleur Hanger that protects your derailleur against chain jams by pivoting back and out of the way and slips slightly when encountering impacts. It improves shifting performance, guarantees better alignment, works with all drivetrains and is available anywhere.

Speed Balanced Geometry

SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider. This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed manoeuvring as well as improved traction, control and confidence for any skill level of rider.

Geometry

Small
HIGH/LOW
Medium
HIGH/LOW
Large
HIGH/LOW
X Large
HIGH/LOW
XX Large
HIGH/LOW
A. Reach 430 / 425mm 460 / 455mm 485 / 480mm 510 / 505mm 535 / 530mm
B. Stack 619 / 624mm 619 /624mm 628 / 633mm 637 / 642mm 646 / 651mm
C. Effective Tt Length 547 / 550mm 577 / 580mm 605 / 608mm 633 / 636mm 661 / 664mm
D. Seat Tube Length 360mm 390mm 430mm 460mm 490mm
E. Effective St Angle 79.6° / 79.1° 78.8° / 78.3° 78.1° / 77.6° 77.5° / 77° 77.2° / 76.7°
Saddle Height For Effective St Angle 600mm 660mm 720mm 780mm 820mm
Actual St Angle 70.5° / 70° 70.5° / 70° 70.5° / 70° 70.5° / 70° 70.5° / 70°
Seat Tube Offset At Bb 100mm 100mm 100mm 100mm 100mm
F. Head Tube Length 100mm 100mm 110mm 120mm 130mm
G. Head Tube Angle 63° / 62.5° 63° / 62.5° 63° / 62.5° 63° / 62.5° 63° / 62.5°
H. Chainstay Length 446 / 448 446 / 448 446 / 448 452 / 454 452 / 454
I. Wheelbase 1227 / 1229mm 1257 / 1259mm 1287 / 1289mm 1322 / 1324mm 1352 / 1354mm
J. Bottom Bracket Drop 25 / 32mm 25 / 32mm 25 / 32mm 25 / 32mm 25 / 32mm
K. Estimated Bb Height 350 / 343mm 350 / 343mm 350 / 343mm 350 / 343mm 350 / 343mm
L. Stand Over Height 685 / 680mm 700 / 695mm 715 / 710mm 730 / 725mm 745 / 740mm
M. Fork Offset 44mm 44mm 44mm 44mm 44mm

Giddyup Suspension Design

We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.

With nearly 23% progression and the most current evolution of our GiddyUp suspension kinematic, the Spire has an excellent balance of support and small bump sensitivity. Anti-squat is tuned to enhance pedalling performance and provides a platform to push against when pumping, without sacrificing a bottomless feel when needed.

The GiddyUp suspension layout is tuned to work correctly with both air and coil rear shocks. Riders are able to add or remove volume spacers in the rear air shock to suit their individual riding style and there is plenty of bottom out control with air or coil shocks when things get rowdy. The Spire has 170mm of rear wheel travel when used with the supplied 205mm x 65mm stroke shock. It is also possible to install a shorter, 205mm x 60mm stroke shock to decrease the rear wheel travel to 160mm if you are after a shorter travel experience.

A suggested sag range of 27 - 33% allows the rider to tune the feel of the bike; from a firm and snappy jump and slash mode, to a more supple and active full on party mode. Wherever you end up, you can focus on the trail without remotes, levers or knobs. Just grab your bike and GiddyUp.
