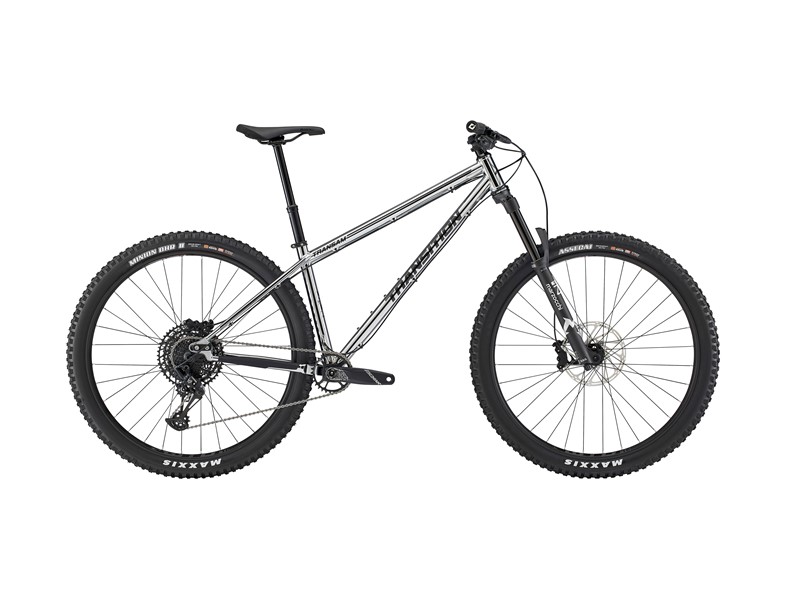

Transition TransAm Steel Hardtail MTB Complete Bike
Colour | Size | Group | Stock | SSP |
---|---|---|---|---|
Chrome | S | SRAM NX | 2 | £2,899.00 |
Chrome | M | SRAM NX | 3 | £2,899.00 |
Chrome | L | SRAM NX | 6 | £2,899.00 |
Chrome | XL | SRAM NX | 1 | £2,899.00 |
Colour Options
Transition TransAm Steel Hardtail MTB Complete Bike
The Passionate Pioneer
It will steel your heart.
The classic TransAM returns! After a seven-year hiatus, the reliable trail-shredding hardtail is back in the line-up for a limited time. Now with modern geometry, dual 29-inch wheels, a capable build spec or frameset options, and two classic colour schemes, this will be one to hang on to and pass down for many generations. The updated geo encourages hard-charging but rewards thoughtful line choice. It orchestrates a fast-paced ballet through the landscape of your choosing. The new TransAM is ready for the core rider looking to get back to their roots.
Specifications | |
---|---|
Frame | TransAM Chromoly Steel |
Wheel Size | 29" |
Fork | Marzocchi Z2 (150mm) |
Headset | FSA No.10/7B/44 |
Stem | RaceFace Aeffect R (40mm) |
Handlebar | RaceFace Chester 35 SM/MD(780x20) LG/XL(780x35) |
Grips | ODI Elite Flow Lock-On |
Saddle | SDG Bel Air 3 |
Seatpost | OneUp Dropper Post SM(150mm) MD(180mm) LG/XL(210mm) |
Brakes | SRAM DB8 |
Rotors | SRAM Centerline (200/180mm) |
Shifter | SRAM NX Eagle MMX |
Derailleur | SRAM NX Eagle |
Cassette | SRAM PG 1230 (11-50t) |
Chain | SRAM NX Eagle |
Crank | SRAM Descendent 6k DUB (170mm x 30t) |
Rims | WTB ST i30 |
Spokes | Pillar Double Butted |
Hubs | Novatech D791SB/D902SB |
Tire/Front | Maxxis Assegai 3C EXO+ (2.5) |
Tire/Rear | Maxxis Minion DHRII 3C EXO+ (2.4) |
Included | Tubeless Valves & Sealant |
Weight | 33.0 lbs / 14.97 kg (Size MD) |
Simple Is Fun
For the rider who loves refined simplicity with the feeling of the wind in their face as they rip beautiful ribbons of terra-firma in both directions, we give you the TransAM. The TransAM brings a feeling of nostalgia and reminds its rider of that first taste of freedom when they were young.
For those that watch The Wizard of Oz while listening to the dark side of the moon. For the Off-Road Cyclist. For the person who doesn't always have a plan but knows that whatever lies ahead will be a most excellent adventure. The TransAM pays homage to the free spirits of yesteryear who found rolling through the mountains on two wheels to be the best way to experience life.
Less Is More
Tech keeps getting more complicated, the list of features gets longer, and the number of batteries keeps increasing. While we too are a bunch of bike nerds, excited about the latest and greatest, at our core we are mountain bikers who simply care about good dirt and good company. The new TransAM has no batteries, no motor, no apps, just a Chromoly frame that'll last a lifetime. In contrast to the times, we wanted to resurrect a bike that was clean and simple. With just enough updates and features like adjustable sliding dropouts, a UDH, and options for different wheel sizes, you can customize your bike to fit your style. Get the complete or the frame, either way, get out there and leave the fuss behind.
- Adjustable Dropout
Run gears or single speed, your choice. - Multiple Wheel Options
run 29" or 27.5". - Steel is Real
Nothing beats the feel of our custom butted chromoly steel frame. - Storage and Waterbottle Mounts
4 mounting holes on the downtube. - External Cable Routing
Simple and quick setup and on the fly maintenance. - UDH Hanger
The TransAM features the SRAM Universal Derailleur hanger available everywhere. - Lifetime Frame Warranty
We believe your frame should last longer than you.
SM | MD | LG | XL | |
---|---|---|---|---|
A.REACH | 430 mm | 460 mm | 485 mm | 510 mm |
B.STACK | 641 mm | 641 mm | 646 mm | 655 mm |
C.EFFECTIVE TT LENGTH | 584 mm | 614 mm | 640 mm | 667 mm |
D.SEAT TUBE LENGTH | 370 mm | 400 mm | 430 mm | 460 mm |
E.EFFECTIVE ST ANGLE | 76.5° | 76.5° | 76.5° | 76.5° |
F.HEAD TUBE LENGTH | 105 mm | 105 mm | 110 mm | 120 mm |
G.HEAD TUBE ANGLE | 64.0° | 64.0° | 64.0° | 64.0° |
H.CHAINSTAY LENGTH | 425-437 mm | 425-437 mm | 425-437 mm | 425-437 mm |
I.WHEELBASE (Based on 425mm Chainstay Setting) | 1187 mm | 1219 mm | 1246 mm | 1276 mm |
J.BOTTOM BRACKET DROP | 50 mm | 50 mm | 50 mm | 50 mm |
K.ESTIMATED BB HEIGHT | 320 mm | 320 mm | 320 mm | 320 mm |
L.STAND OVER HEIGHT | 662 mm | 667 mm | 670 mm | 677 mm |
M.FORK OFFSET | 44 mm | 44 mm | 44 mm | 44 mm |
N.SEAT POST INSERTION | 250 mm | 280 mm | 320 mm | 350 mm |
Frame Specifications
Front Travel: | 150mm |
Wheel Size: | 29" F&R |
Sizes: | SM, MD, LG, XL |
Colours: | Chrome |
Frame Material: | Chromoly Steel, 4130 |
Fork Axle To Crown: | 574mm (Excludes Headset) |
Fork Offset: | 44mm |
Headset (Top): | ZS44 |
Headset (Bottom): | EC44 |
Bb Shell: | 73mm BSA Thread |
Chainline: | 52-55mm |
Rear Brake Mount: | 160mm IS, Max Rotor Size 223mm |
Derailleur Hanger: | SRAM UDH (T-Type Direct Mount) |
Rear Axle: | Transition Axle For UDH, 12mm x 148mm Spacing |
Iscg Tabs: | ISCG05 |
Seatpost Diameter: | 30.9mm |
Seat Clamp: | 34.9mm |
Max Seatpost Insertion: | Small 250mm | Medium 280mm | Large 320mm | X-Large 350mm |
Max Chainring Size: | 34T Single Ring |
Max Tire Size: | 29 x 2.5 |
