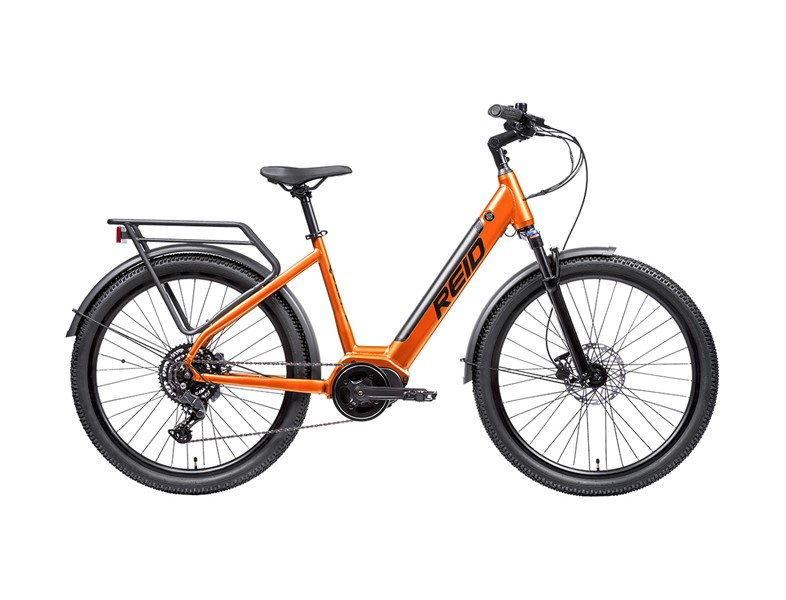

Reid Quest 2 ST Commuter Ebike
ETA:
Unknown
Reid Quest 2 ST Commuter Ebike
Elevate your riding experience with the Quest 2 eBike, a premium urban and trail companion engineered for powerful performance and refined comfort. At its core is a dynamic Ananda M60 250 W 36 V mid-motor, delivering a robust 70 Nm of torque for incredibly natural power assistance and exceptional climbing ability. This is seamlessly integrated into a sophisticated Reid 6061 alloy frame with internal cabling and an integrated 36 V 11.6 Ah 418 Wh battery, ensuring a clean aesthetic and optimal balance. Stay connected and informed with the Ananda D18 Bluetooth display, offering clear ride data and app compatibility.
The Suntour XCM32 80 mm travel fork with hydraulic lockout allows you to fine-tune your suspension for varying terrain, from smoothing out urban potholes to improving efficiency on climbs. Experience precise and durable shifting with the advanced Shimano Cues U4000 9-speed drivetrain, featuring Shimano Cues U4000 9-speed shifters and rear derailleur. Paired with an Ananda 170 mm 38T narrow/wide chainset and a wide-range Shimano Cues LG300 9-speed 11-46T cassette, you'll effortlessly conquer any incline with a reliable and expansive gear range.
Stopping power is consistently strong and dependable thanks to Tektro HD-M275 hydraulic disc brakes, with 180 mm front and 160 mm rear rotors for powerful braking in all conditions. Rolling on versatile Kenda 27.5 x 2.35" tyres, the Quest 2 provides excellent stability, traction, and comfort over diverse urban and light trail surfaces. The Reid alloy riser bars (700 mm) and an adjustable Reid A-head 80 mm stem allow for a customizable and upright riding posture. An enhanced Reid Comfort Plus saddle and Reid ergo rubber grips complete the package, ensuring every journey is a pleasure.
Specifications
Frame | Reid 6061 with internal cabling and integrated battery |
Fork | Suntour XCM32 80 mm travel hydraulic lockout |
Battery | Integrated 36 V 11.6 Ah 418 Wh |
Motor | Ananda M60 250 W 36 V 70 nm mid motor |
Display | Ananda D18 Bluetooth display App compatible |
Shifters | Shimano Cues U4000 9-speed |
Front Derailleur | N/A |
Rear Derailleur | Shimano Cues U4000 9-speed |
Chainset | Ananda alloy 170 mm 38T narrow/wide |
Freewheel/Cassette | Shimano Cues LG300 9-speed 11-46T |
Chain | KMC X9 |
Bottom Bracket | N/A |
Brakes | Tektro HD-M275 F:180 / R:160 mm rotor |
Brake Levers | Tektro HD-M275 alloy lever |
Tyres | Kenda 27.5 x 2.35" |
Wheelset Rim | Reid double wall alloy |
Hub | Reid alloy QR front/rear |
Handlebars | Reid alloy riser bars 700 mm |
Stem | Reid A head 80 mm adjustable |
Saddle | Reid Comfort Plus |
Seatpost | Reid alloy 30.4 mm |
Grips | Reid ergo rubber |
Pedals | Alloy platform, 9/16″ steel axle |
Geometry
Top Tube Length | 591 mm |
Seat Tube Length | 420 mm |
Seat Tube Angle | 73° |
Head Tube Length | 160 mm |
Head Tube Angle | 70° |
Chainstay | 455 mm |
Wheelbase | 1112 mm |
Full Fork Length | 503 mm |
Fork Offset | 44 mm |
BB Drop | 45 mm |
