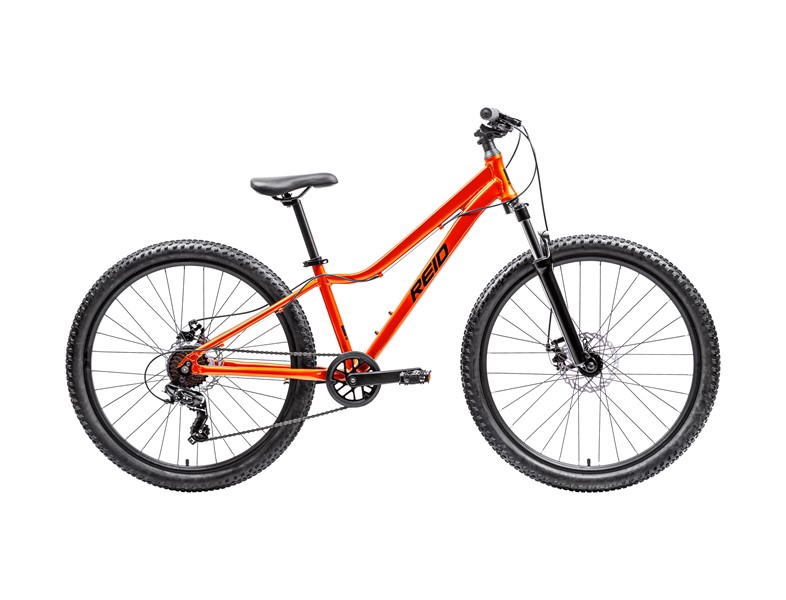

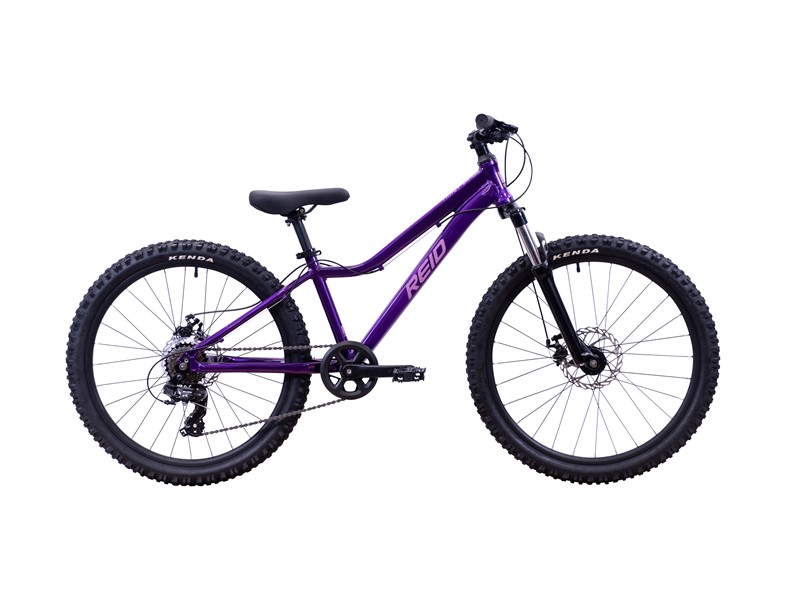

Reid Tract Jr 24" Kid's Bike
ETA:
Unknown
Reid Tract Jr 24" Kid's Bike
This bike doesn't just look rad, it backs it up on the trail. For kids who want to rock the neighbourhood or smash the trails.
Built around a tough but lightweight 6061 alloy frame designed for increased step over clearance, the Jr brings all the features of our Tract range to the kids.
Front suspension (40 mm for 20” wheel and 50 mm for 24” wheel) to keep the bumps at bay, double wall alloy rims and 2.35” tyres to keep the wheels in the groove, and powerful cable disc brakes to keep it all under control. Equipped with Shimano 7-speed tourney gearing and aluminium kids' specific componentry, the Tract Jr. really is just as good as the adult version.
We believe kids should be given the best opportunity to keep up with their parents and peers. The Jr. is true to that philosophy and the perfect way for kids to explore the outdoors.
Specifications
| Frame | 6061 aluminium alloy |
| Fork | 24" Suspension 50 mm travel |
| Shifters | LTWOO A2 7 speed trigger |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Tourney TY21 |
| Chainset | Alloy crankset single chainring 152 mm 32T |
| Freewheel/Cassette | Shimano 7-speed freewheel (14-28t) |
| Chain | KMC HP-6L 7 speed |
| Bottom Bracket | Neco sealed bearing |
| Brakes | Jak 5 mechanical disc brake |
| Brake Levers | Alloy (Children specific reach) |
| Tyres | Kenda 24 x 2.35″ |
| Wheelset Rim | Reid double wall alloy 24H |
| Hub | Reid alloy bolt on 28H |
| Handlebars | Reid alloy riser bar 500 mm |
| Stem | Ahead 1 1/8 alloy 40 mm |
| Saddle | Reid Junior |
| Seatpost | Reid alloy 27.2 mm, 250 mm micro adjust |
| Grips | Reid Junior rubber |
| Pedals | Reid PVC platform |
Geometry
| Top Tube Length | 520 mm |
| Seat Tube Length | 310 mm |
| Seat Tube Angle | 72° |
| Head Tube Length | 110 mm |
| Head Tube Angle | 69° |
| Front Centre | 590 mm |
| Chainstay | 410 mm |
| Wheelbase | 999 mm |
| Full Fork Length | 410 mm |
| Fork Offset | 37 mm |
| BB Drop | 26.5 mm |
