Transition PBJ Youth Alloy Hardtail MTB Complete Bike 24"

ssp
Preorder: First delivery arriving mid-November
Code Colour Size Stock SSP
01.26.11.5701 Acid Bath Youth 0 £1,599.00

Colour Options

ETA:

Unknown

Quantity

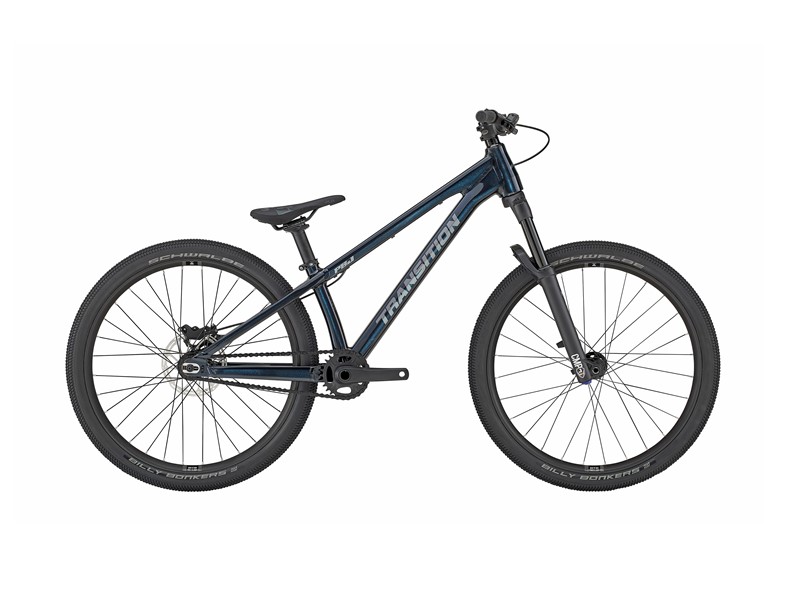

Transition PBJ Youth Alloy Hardtail MTB Complete Bike 24"

The all-new PBJ is here!

The best thing in-between sliced bread.

The all-new PBJ was redesigned from the ground up, now featuring an aluminum frame, new geometry and added features. The hydro-formed 6061 aluminum frame allowed us to build in the features that riders need for the level of riding today, unlocking extremely short chainstays and low standover height. The geometry and sizing has evolved to provide a quick and responsive feel, to help pump through corners and pull back off the steepest of lips. For riders seeking to find their flow riding dirt jumps, skate park, and pump track, look no further, the PBJ is here to pump, bump and jump everything in sight. Now available in two sizes, short and standard, to best suit rider's needs.

Short

The "Short" size was designed not only for shorter humans, but also to complement riders looking for a precise feel that allows for ultimate creativity. This size may just help you land that next rotation, boost out of the quarter pipe, or nail the trickiest of manual lines with a 377 - 395 mm chainstay length and 395 mm reach.

Standard

The "Standard" size is best for riders looking to sharpen their skills at the pumptrack, or prefer a more stable geo for bigger jumps and higher speeds without sacrificing the playfulness of the short rear end. This size has the same 377 - 395 mm chainstay length as the short, and is paired with a 420 mm reach.

Hydro-Formed 6061 Aluminum

The all-new new frame is made of hydro-formed 6061 aluminium, known for its high strength to weight ratio, and smooth look. It's both simple and refined, all while keeping it light. The design keeps things compact with a low standover height, giving you a feeling of effortless control with room to move. The clean lines create a modern vibe with a laid-back, minimalist style that fits in at the dirt jumps, skate park or pumptrack.

Chain Tensioners

Integrated chain tensioners make it easy to fine tune your chain tension and keep the rear wheel aligned in your frame. These work with all 10x135 hubs and are easy to adjust with the tool-less design.

Cable Routing

Internal or external cable routing allows you to have it your way. Run your brake cable internal for a clean and tidy look, or external to make brake swaps simple as well as give gyro capability.

PBJ Geometry

ShortStandard
A. Reach395420
B. Stack575584
C. Effective Toptube Length603631
D. Seattube Length310310
E. Effective Seattube Angle7171
Saddle Height for Effective Seattube Angle420420
Actual Seattube Angle68.368.3
Seattube Offset At Bottom Bracket2222
F. Headtube Length120130
G. Headtube Angle69.569.5
H. Chainstay Length377 - 395377-395
I. Wheelbase1018 - 10361047 - 1065
J. Bottom Bracket Drop (Front)2020
J. Bottom Bracket Drop (Rear)2020
K. Estimated Bottom Bracket Height315315

Frame Specs

Frame Material:Alloy
Wheel Size:26" & 24"
Sizes:Youth, Short, Standard
Waterbottle Fitment:None
Fork Offset:37 mm 26"
41 mm 24"
Fork Axle-to-Crown:483 mm 26" (Including Headset)
458 mm 24" (Including Headset)
Headset (Top):44mm Zero Stack (ZS44)
Headset (Bottom):56mm Zero Stack (ZS56)
BB:73 mm BSA Threaded
ISCG Tabs:None
Chainguide:None
Chainring Maximum:30T
Chainline:49.5 mm
Rear Brake Mount:IS 160 mm
Derailleur Hanger:None
Rear Axle:10 × 135 mm with Integrated Chain Tensioners
Seat Clamp:34.9 mm
Seatpost Diameter:31.6 mm
Notes:Internal Cable Routing, Optional External Routing
Front Travel:100 mm

24" Bike Specs

FramePBJ Youth Alloy
Wheel Size24"
ForkManitou JUNIT Comp
(100 mm)
HeadsetFSA No.57E
StemTrans-X (35 mm)
HandlebarSDG Slater JR
(600 × 19 mm)
GripsSDG Slater JR
SaddleSDG Fly JR
SeatpostTrans-X SP66
BrakesSRAM DB4 (Rear Only)
RotorsSRAM Centerline (160mm)
Cassette12T Single Cog
ChainKMC K1 Wide
CrankSamox 2-Piece Alloy Direct Mount
(28T/135 mm)
RimsWTB ST i30
SpokesPillar Straight Gauge
HubsNovatech D791SB/D256SBT
Tyre/FrontSchwalbe Billy Bonkers (2.0)
Tyre/RearSchwalbe Billy Bonkers (2.0)
Colour OptionsAcid Bath
Obsidian
Weight21.7 lbs / 9.84 kg (One Size)
