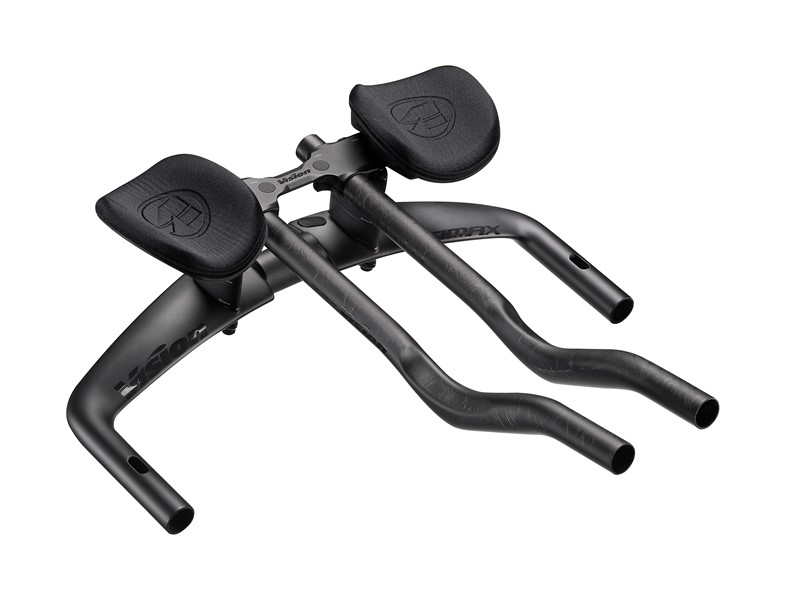

Vision Trimax Carbon Si-013 JS-Bend Semi Integrated Aero Bar V23

ssp
Code Width Bend Stock SSP
670-0441031030 40cm JS-Bend 0 £739.99

ETA:

24/01/2025

Quantity

Vision Trimax Carbon Si-013 JS-Bend Semi Integrated Aero Bar V23

  • Highly adjustable and customizable semi-integrated design.
  • Lightweight carbon wing and extension.
  • Internal cable routing and Di2 compatible.
  • Forged AL6061/T6 brackets and hardware.
  • Composite armrests with low profile ergonomic pads.
  • JS-Bend extension.
  • UD carbon finish.
  • Weight: 1,130g.
Dimensions
01. Stack70 to 145mm (bottom of stem at centre of top of uncompressed pad - 5mm increments)
02. Reach16.5 to 106.5mm (centre of Base bar to rear edge of armrest - l7.5mm increments)
03. Armrest Width210 to 360mm (outside-to-outside - 15mm increments)
04. Extension Adjustment245 to 385mm (centre of base bar to tip)
05. Extension Length412mm
06. Extension Height60mm (c-c)
07. Extension Angle35° (12° at extension tip)
08. Extension Width80mm (c-c)
09. Base Bar Width400mm (c-c)
10. Bae Bar Drop±25mm (c-c)
11. Armrest Rotation0° to 13°
12. Bracket Adjustment0° to 16°
