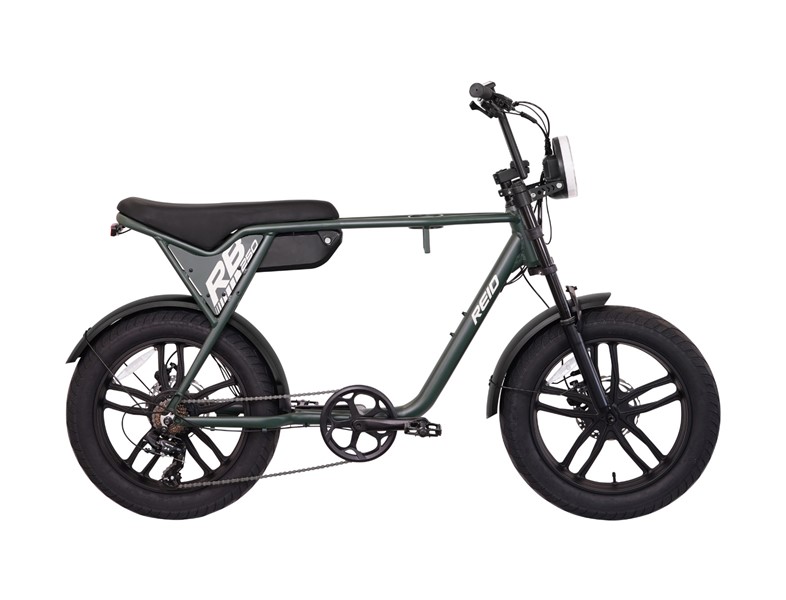

Reid RB250 Moto Style 20" eBike

ssp
Preorder: Arriving Autumn 2026
Code Size Stock SSP
12604526520 20" 0 £1,199.99

ETA:

Unknown

Quantity

Reid RB250 Moto Style 20" eBike

Specifications

Frame Reid 6061 alloy with internal cable routing, integrated bench seat and stubby storage
Fork Alloy dual crown suspension fork
Battery 13 Ah top tube integrated
Motor 250 W rear hub motor
Display Key Display KD126 colour LED handlebar mounted display
Throttle N/A
Motor Torque 40 Nm
Power 250 W
Voltage 48 V
Battery Wh 624 Wh
Shifters LTWOO 7 speed
Front Derailleur N/A
Rear Derailleur Shimano RD-TY300
Chainset Prowheel alloy 46T 165 mm
Freewheel/Cassette Shimano 7 speed freewheel 14-28T
Chain KMC Z7
Bottom Bracket Sealed square taper
Brakes Tektro HDM275 hydraulic disc brake 180 mm rotors
Brake Levers Tektro HDM275
Tyres 20 × 4.0" all road tread
Wheelset Rim One piece magnesium alloy
Hub Integrated magnesium alloy nutted front, 250w rear hub motor
Handlebars Riser bar, 660 mm wide, 250 mm rise
Stem Alloy 50 mm
Saddle Frame integrated bench seat
Seatpost N/A
Grips Reid grips
Pedals Alloy platform
Mudguards Front and rear mudguards
Kickstand Alloy kickstand

Geometry

Top Tube Length 543.5 mm
Seat Tube Length 560 mm
Seat Tube Angle 78°
Head Tube Length 150 mm
Head Tube Angle 69°
Front Centre 666 mm
Chainstay 455 mm
Wheelbase 1120 mm
Stack 550 mm
Reach 400 mm
Full Fork Length 435 mm
Fork Offset 60 mm
BB Drop 27 mm
Stem Length 50 mm
