Reid Granite 1 Dropbar Gravel Bike

£699.99 £699.99
ssp
Preorder: Arriving Autumn 2026
Code Size Size (cm) Stock SSP
12604844548 S 48 cm 0 £699.99
12604844551 M 51 cm 0 £699.99
12604844554 L 54 cm 0 £699.99
12604844557 XL 57 cm 0 £699.99

ETA:

Unknown

Quantity

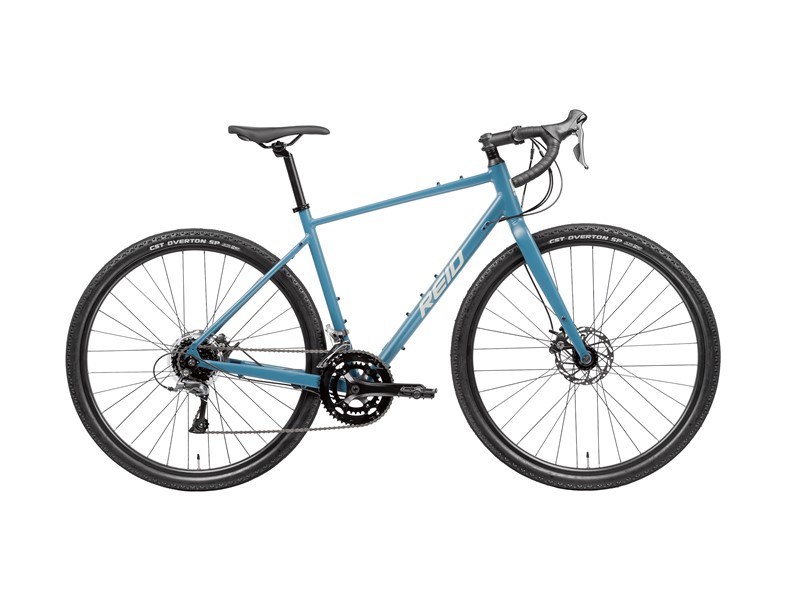

Reid Granite 1 Dropbar Gravel Bike


The Granite 1 is your entry to the Reid performance gravel range. Updated geometry for more confident off-road exploring, improved controls and ergonomics and a new frame that boast large tyre clearance and plenty of mounting points, the Granite 1 is a tool for getting out and exploring new roads and trails and everything in between.

Whether you need a rugged commuter, your first bike-packing bike, or just a do it all machine at a great price point, the Granite 1.0 has got your back. Sharing gravel inspired geometry with all the same mudguard and equipment mounts as the top of the range Granite 3, this is a bike that is more than capable of epic adventures. The custom 6061 aluminium frame is built to be light, comfortable and offer a confidence inspiring position for great control on both road and off road terrain.

The gears are now upgraded to Shimano Claris, featuring sleek and comfortable STI shifters and a 2 × 8 gear range to ensure you are ready for any incline. Braking is courtesy of market leaders Tektro, with cable disc brakes and 160 mm rotors for awesome control in all weather conditions. The Granite 1.0 is finished with a comfortable saddle, light weight aluminium finishing kit and CST Overton 45 mm tyre which are fast rolling on paved surfaces while still offering superb grip off-road.

Specifications

Frame6061 alloy with internal cable routing, luggage mounts, and enhanced tyre clearance
ForkAluminium, flat mount disc and QR dropout
ShiftersShimano Claris R2000 8-speed
Front DerailleurShimano Claris FD-R2000
Rear DerailleurShimano Claris RD-R2000 8-speed
ChainsetProwheel 50-34T 170 mm
Freewheel/CassetteShimano CS-HG200 8-speed 12-32T
ChainKMC 8-speed
Bottom BracketBSA square taper sealed bearing
BrakesTektro MD-C310
Brake LeversShimano Claris
TyresCST Overton SP 700 × 45c
Wheelset RimDouble wall alloy 32H
HubQR front and rear, 6 bolt 32H
HandlebarsReid alloy gravel drop bar, S/M 380 mm L/XL 400 mm, 10° flare
StemReid alloy stem, 1 1/8", 31.8 mm clamp, S/M 70 mm L 80 mm XL 90 mm
SaddleReid Gravel
SeatpostReid alloy micro adjust 27.2 × 350 mm
GripsReid Comfort
PedalsAlloy platform

Geometry

Top Tube Length540 mm
Seat Tube Length480 mm
Seat Tube Angle74°
Head Tube Length130 mm
Head Tube Angle71°
Front Centre605 mm
Chainstay445 mm
Wheelbase1039 mm
Stack578.8 mm
Reach374 mm
Full Fork Length417 mm
Fork Offset50 mm
BB Drop75 mm
Stem Length70 mm
