Reid Granite 2 Dropbar Gravel Bike
ETA:
Unknown

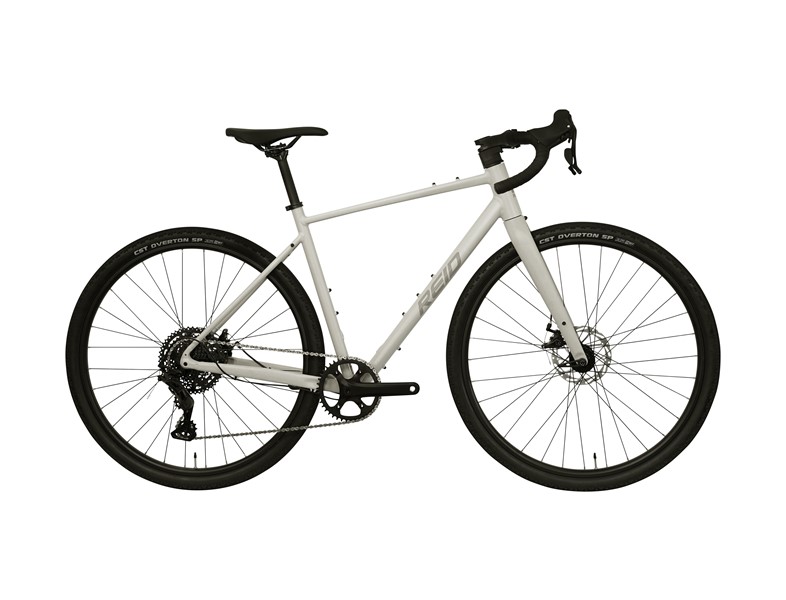

Reid Granite 2 Dropbar Gravel Bike
The Granite 2 delivers exceptional performance and value and suits the rider looking to take their gravel adventures to the next level. A lightweight aluminium frame, full carbon fork with hidden internal cables and revamped Microshift Sword groupset delivers a bike that is seriously fun and exceptionally capable. From road to bridleway, dust to dirt, the Granite 2 is ready for it.
Microshift are renowned for packing performance and value into their products and the new Sword Black is the perfect example of that. Developing wide range one-by groupsets at a more affordable price point means better performance for those who don't want to break the bank. A 42t chainring and wide range 11-46t cassette provides easy gears for gruelling climbs with plenty of speed for fast descents.
The Granite 2 benefits from the same frame as the more expensive Granite 3 with custom tubeset, internal headset cable routing and plenty of mounting options. Its lightweight and combined with a full carbon fork with internally routed cables to offer an unrivalled finish in its class.
Tektro MD-C550 mechanical disc brakes are smooth, reliable and powerful thanks to the dual piston pad design. CST Overton tyres are versatile and fast rolling meaning the Granite 2 is just as thrilling on the road as it is exploring trails and towpaths.
Specifications
| Frame | 6061 alloy with 142 mm x 12 mm thru axle, internal headset cable routing, luggage mounts, dropper post routing and enhanced 50 mm tyre clearance |
| Fork | Full carbon with tapered steerer and 12 mm thru axle, 50 mm tyre clearance |
| Shifters | Microshift Sword Black 9-speed |
| Front Derailleur | N/A |
| Rear Derailleur | Microshift Sword Black 9-speed |
| Chainset | Prowheel 42T 170 mm |
| Freewheel/Cassette | Microshift 9-speed 11-46T |
| Chain | KMC 9-speed |
| Bottom Bracket | BSA square taper sealed bearing |
| Brakes | Tektro MD-C550 mechanical flat mount disc brake 160 mm rotors |
| Brake Levers | Microshift Sword |
| Tyres | CST Overton SP 700 × 45c |
| Wheelset Rim | Double wall alloy 32H |
| Hub | 12 mm thru axle front, 142 mm x 12 mm rear 6 bolt 32H |
| Handlebars | Reid alloy butted gravel drop bar, S/M 380 mm L/XL 400 mm, 10° flare |
| Stem | Reid alloy stem, internal cable routing, 1 1/8", 31.8 mm clamp, S/M 70 mm L 80 mm XL 90 mm |
| Saddle | Reid Gravel |
| Seatpost | Reid alloy micro adjust 27.2 × 350 mm |
| Grips | Reid Comfort |
| Pedals | Alloy platform |
Geometry
| Top Tube Length | 540 mm |
| Seat Tube Length | 480 mm |
| Seat Tube Angle | 74° |
| Head Tube Length | 130 mm |
| Head Tube Angle | 71° |
| Front Centre | 602.4 mm |
| Chainstay | 435 mm |
| Wheelbase | 1026 mm |
| Stack | 569 mm |
| Reach | 377 mm |
| Full Fork Length | 406 mm |
| Fork Offset | 48 mm |
| BB Drop | 75 mm |
| Stem Length | 70 mm |
