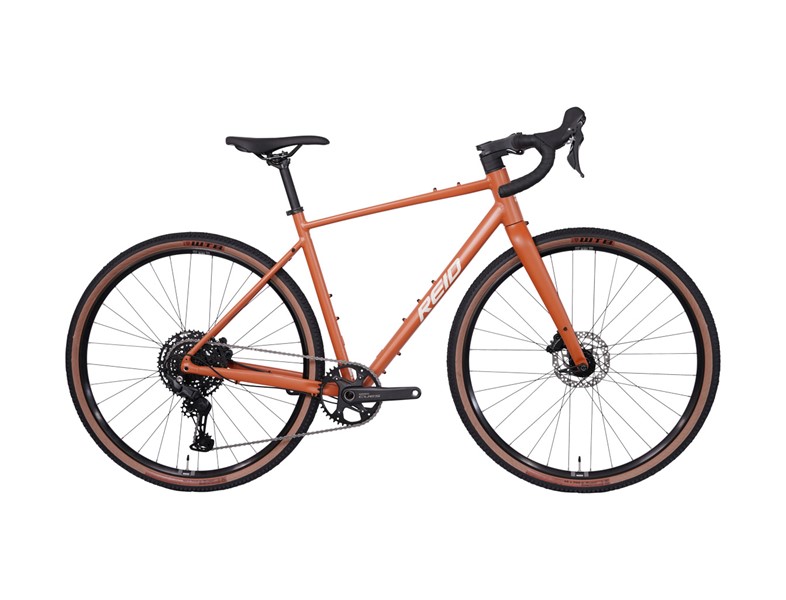

Reid Granite 3 Dropbar Gravel Bike
ETA:
Unknown
Reid Granite 3 Dropbar Gravel Bike
The Granite 3 builds on the success of its predecessor as a fast and fun gravel bike that is ready for any adventure. Now with refined geometry, a sleeker frame and full carbon fork with hidden cables and Shimano's latest CUES drop bar groupset, the Granite 3 is about riding further, riding harder and enjoying the thrill of gravel adventures.
Shimano CUES hydraulic levers benefit from the same ergonomic shape as the hugely popular 105 groupset to ensure comfort and control during long days in the saddle, while the 45 mm tubeless ready WTB Riddler tyres help guarantee grip over rough terrain. Internal rim width has increased to 25 mm and the new frame and fork has increased tyre clearance to allow for 50 mm gravel tyres with mud shedding clearance.
The brand new frame with custom tubeset, internal headset cable routing and plenty of mounting options is lightweight, sleek and versatile. Whether commuting on the road, heading out to the forest to get away from the traffic or traverse new territories on a multi-day bike packing adventure, the Granite 3 is poised and ready to explore.
Specifications
| Frame | 6061 alloy with 142 mm x 12 mm thru axle, internal headset cable routing, luggage mounts, dropper post routing and enhanced 50 mm tyre clearance |
| Fork | Full carbon with tapered steerer and 12 mm thru axle, 50 mm tyre clearance |
| Shifters | Shimano Cues U6030 Hydraulic 10-speed |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano Cues U6000 10-speed |
| Chainset | Shimano Cues U6040-1 42T 170 mm |
| Freewheel/Cassette | Shimano Cues LG300 10-speed 11-48T |
| Chain | KMC XGlide 10-speed |
| Bottom Bracket | Shimano BSA external sealed bearing |
| Brakes | Shimano Cues U6030 hydraulic disc brake 160 mm rotor |
| Brake Levers | Shimano Cues hydraulic |
| Tyres | WTB Riddler 700 × 45C 60TPI tubeless ready |
| Wheelset Rim | WTB STi25 TCS, tubeless ready 32H |
| Hub | 12 mm thru axle front, 142 mm x 12 mm rear 6 bolt 32H |
| Handlebars | Reid alloy butted gravel drop bar, S/M 380 mm L/XL 400 mm, 10° flare |
| Stem | Reid alloy stem, internal cable routing, 1 1/8", 31.8 mm clamp, S/M 70 mm L 80 mm XL 90 mm |
| Saddle | Reid Gravel |
| Seatpost | Reid alloy micro adjust 27.2 × 350 mm |
| Grips | Reid Comfort |
| Pedals | Alloy platform |
Geometry
| Top Tube Length | 540 mm |
| Seat Tube Length | 480 mm |
| Seat Tube Angle | 74° |
| Head Tube Length | 130 mm |
| Head Tube Angle | 71° |
| Front Centre | 602.4 mm |
| Chainstay | 435 mm |
| Wheelbase | 1026 mm |
| Stack | 569 mm |
| Reach | 377 mm |
| Full Fork Length | 406 mm |
| Fork Offset | 48 mm |
| BB Drop | 75 mm |
| Stem Length | 70 mm |
